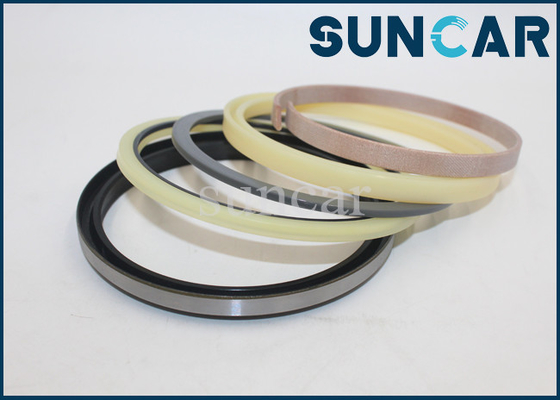

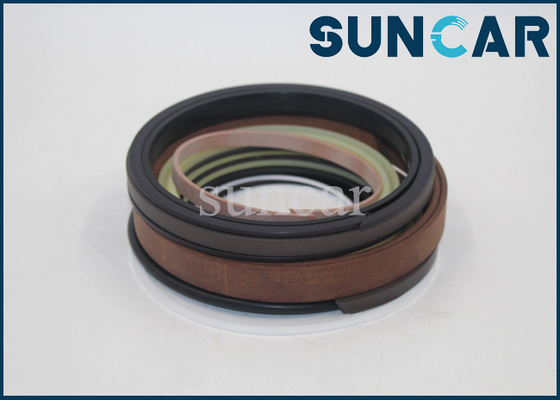

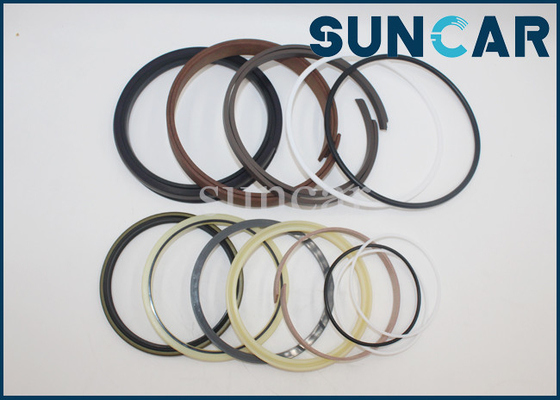

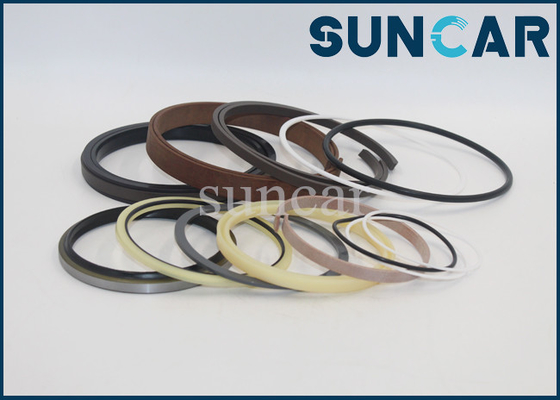

31Y1-20910 31Y120910 Boom Cylinder Repair Seal Kit For R360LC-7 R370LC-7 Hyundai Heavy Equipment
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 31Y1-20910 HYUNDAI R360LC-7, R360LC-7A, R370LC-7 |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability | 1000 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Boom Cylinder Repair Seal Kit | Warranty | Unavailable |
|---|---|---|---|
| Part No. | 31Y1-20910, 31Y120910 | Sample | Available |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ | Condition | New, Genuine New |
| High Light | HYUNDAI Seal Kit,Boom Cylinder Repair Seal Kit,31Y1-20910 Excavator Service Kit |
||
Product Description
31Y1-20910 31Y120910 Boom Cylinder Repair Seal Kit For R360LC-7 R370LC-7 Hyundai Heavy Equipment
| Product Name | Boom Cylinder Repair Seal Kit |
| Part Number | 31Y1-20910, 31Y120910 |
| Model | 7-SERIES CRAWLER EXCAVATOR R360LC-7, R360LC-7A, R370LC-7 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
Product Show:
Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31NA-50111 | [1] | BOOM CYLINDER-RH(1") |
| *. | 31NA-50112 | [1] | BOOM CYLINDER-RH |
| *. | 31NA-50113 | [1] | CYLINDER ASSEMBLY,RH |
| *. | 31NA-50121 | [1] | BOOM CYLINDER-LH(1") |
| *. | 31NA-50122 | [1] | BOOM CYLINDER-LH |
| *. | 31NA-50123 | [1] | CYLINDER ASSEMBLY,LH |
| 1 | 31Y1-20810 | [1] | TUBE ASSY |
| 2 | 31Y1-20850 | [1] | ROD ASSY |
| 3 | 31Y1-20880 | [1] | GLAND |
| 4 | S732-110045 | [1] | BUSHING |
| 5 | Y191-117000 | [1] | RING-SNAP |
| K6. | Y220-110011 | [1] | SEAL-ROD |
| K7. | Y180-110020 | [1] | RING-BACK UP |
| K8. | Y240-110013 | [1] | RING-BUFFER |
| K9. | Y110-110011 | [1] | WIPER-DUST |
| 10 | Y190-126000 | [1] | RING-SNAP |
| K11. | S631-150004 | [1] | O-RING |
| K12. | S641-150003 | [1] | RING-BACK UP |
| 13 | 31YC-23050 | [1] | RING-CUSHION |
| 14 | 31Y1-08172 | [1] | PISTON |
| K15. | S632-095004 | [1] | O-RING |
| K16. | S642-095003 | [2] | RING-BACK UP |
| K17. | Y420-160000 | [1] | SEAL-PISTON |
| K18. | Y310-160200 | [2] | RING-WEAR |
| K19. | Y440-160000 | [2] | RING-DUST |
| 20 | 31YC-66081 | [1] | WASHER-LOCK |
| 21 | 31YC-61143 | [1] | NUT-LOCK |
| 22 | S109-200904 | [12] | BOLT-SOCKET |
| 28 | 31YC-11205 | [1] | BUSHING-PIN |
| 29 | 31YC-11405 | [1] | BUSHING-PIN |
| 30 | Y000-110100 | [2] | SEAL-DUST |
| 31 | Y000-100100 | [2] | SEAL-DUST |
| 23 | 31Y1-08481 | [1] | BAND ASSY |
| 23 | 31Y1-22590 | [1] | BAND ASSY |
| 23 | 31Y1-22591 | [1] | BAND ASSY |
| 23-1. | 31Y1-08491 | [1] | BAND SUB ASSY |
| 23-1. | 31Y1-22600 | [1] | BAND SUB ASSEMBLY |
| 23-2. | 31YC-32120 | [1] | BAND |
| 23-3. | S015-120452 | [4] | BOLT-HEX |
| 23-4. | S411-120002 | [4] | WASHER-SPRING |
| 23-5. | 31YC-39010 | [1] | CLAMP-PIPE |
| 23-5. | 31YC-39030 | [1] | CLAMP-PIPE |
| 23-6. | S015-140852 | [1] | BOLT-HEXAGON HEAD |
| 23-6. | S015-161002 | [1] | BOLT-HEXAGON HEAD |
| 23-7. | S205-141002 | [1] | NUT-HEXAGON HEAD |
| 23-7. | S205-161002 | [1] | NUT-HEXAGON HEAD |
| 23-8. | S411-140002 | [1] | WASHER-SPRING |
| 23-8. | S411-140002 | [1] | WASHER-SPRING |
| 24 | 31Y1-20900 | [1] | PIPE ASSY-R,RH |
| 24 | 31Y1-22620 | [1] | PIPE ASSY-R,RH |
| 24 | 31Y1-22621 | [1] | PIPE ASSY-R,RH |
| 24 | 31Y1-22622 | [1] | PIPE ASSY-R,RH |
| 24 | 31Y1-20890 | [1] | PIPE ASSY-R,LH |
| 24 | 31Y1-22610 | [1] | PIPE ASSY-R,LH |
| 24 | 31Y1-22611 | [1] | PIPE ASSY-R,LH |
| 24 | 31Y1-22612 | [1] | PIPE ASSY-R,LH |
| 25 | 31Y1-18910 | [1] | PIPE ASSY-B,RH |
| 25 | 31Y1-22640 | [1] | PIPE ASSY-B,RH |
| 25 | 31Y1-22641 | [1] | PIPE ASSY-B,RH |
| 25 | 31Y1-22642 | [1] | PIPE ASSY-B,RH |
| 25 | 31Y1-18900 | [1] | PIPE ASSY-B,LH |
| 25 | 31Y1-22630 | [1] | PIPE ASSY-B,LH |
| 25 | 31Y1-22631 | [1] | PIPE-ASSY-B,LH |
| 25 | 31Y1-22632 | [2] | PIPE ASSY-B,LH |
| K26. | Y171-024004 | [2] | O-RING |
| 27 | S107-120554 | [8] | BOLT-SOCKET |
| 27 | S107-120604 | [8] | BOLT-SOCKET |
| 27 | S107-120554 | [8] | BOLT-SOCKET |
| K. | 31Y1-20910 | [1] | SEAL KIT |
Warm Reminder:
Parts are sold by part number only. Your engine or machine may need a different part number. If you think this is the right part but the part number advertised is different from what you think you need, or you are not sure of the correct part number, please contact us to confirm compatibility. Failing to verify compatibility may result in a return, significant restocking fees and money wasted on shipping.
