Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 31Y1-32450 HYUNDAI R250LC-9, R250LC-9A, R260LC-9S, R260LC-9A, HX260L |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability | 500 Piece per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Arm Cylinder Seal Repair Kit | Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
|---|---|---|---|
| Part No. | 31Y1-32450, 31Y132450 | Sample | Available |
| Shipping Mode | By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.) | Warranty | Unavailable |
| High Light | HYUNDAI Seal Kit,31Y1-32450 Arm Sealing Kit,Cylinder Seal Repair Kit |
||
Product Description

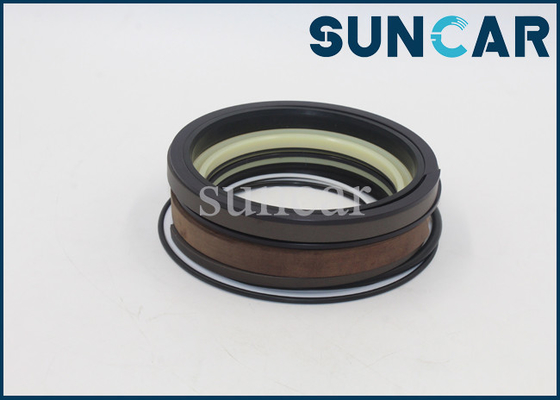

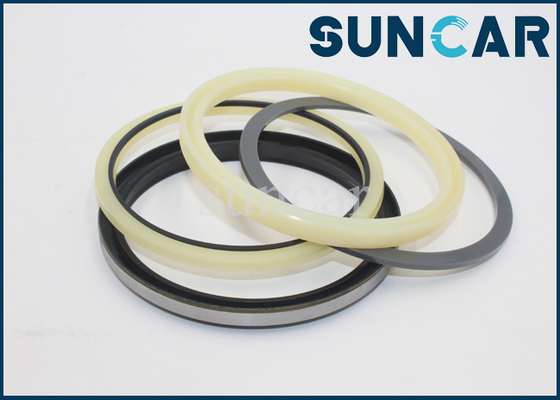

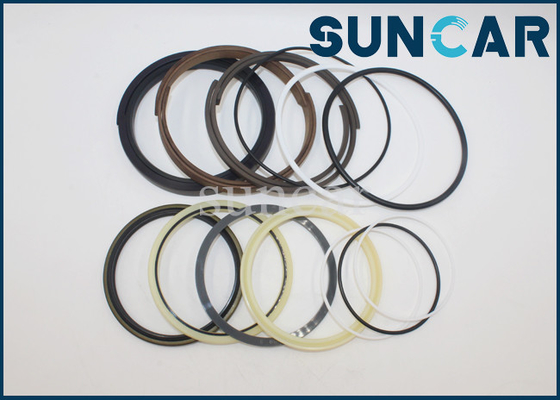

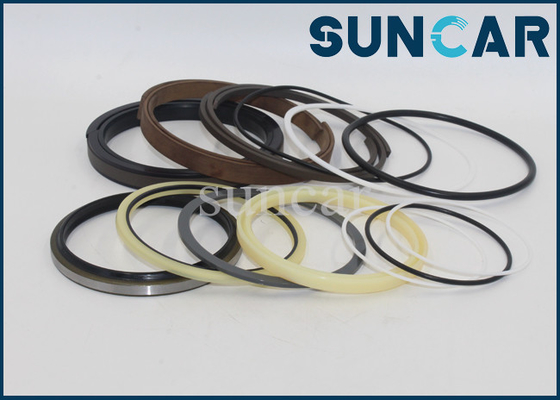

Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
| Product Name | Arm Cylinder Seal Repair Kit |
| Part Number | 31Y1-32450, 31Y132450 |
| Model |
9-SERIES CRAWLER EXCAVATOR R250LC-9, R250LC-9A, R260LC-9S, R260LC-9A; F-SERIES CRAWLER EXCAVATOR HX260L Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q7-50130 | [1] | ARM CYLINDER ASSY |
| *-1. | 31Y1-32191 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-32200 | [1] | TUBE ASSY |
| 2 | 31Y1-32260 | [1] | ROD ASSY |
| 3 | 31Y1-32321 | [1] | GLAND |
| 4 | S732-105040 | [1] | BUSHING-DD2 |
| 5 | Y191-112000 | [1] | RING-SNAP |
| K6. | Y220-105013 | [1] | SEAL-ROD |
| K7. | Y180-105120 | [1] | RING-BACK UP |
| K8. | Y240-105012 | [1] | RING-BUFFER |
| K9. | Y110-105011 | [1] | WIPER-DUST |
| 10 | Y190-121000 | [1] | RING-SNAP |
| K11. | S631-135004 | [1] | O-RING |
| K12. | 31YC-CP135 | [1] | RING-BACK UP |
| 13 | 31YC-28090 | [1] | RING-CUSHION |
| 14 | 31Y1-32360 | [1] | PISTON |
| K15. | Y420-145000 | [1] | SEAL-PISTON |
| K16. | Y310-145003 | [2] | RING-WEAR |
| K17. | Y440-145102 | [2] | RING-DUST |
| K18. | S632-080004 | [1] | O-RING |
| K19. | S642-080003 | [2] | RING-BACK UP |
| 20 | 31YC-68090 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | S632-145004 | [1] | O-RING |
| 23 | S109-200904 | [12] | BOLT-SOCKET |
| 24 | 61Q6-97420 | [2] | BUSHING-PIN |
| K25. | Y020-090100 | [4] | SEAL-DUST,DLI,KPU |
| 26 | 31YC-2A070 | [1] | VALVE-CHECK |
| 27 | 31YC-99071 | [1] | SPRING-COIL |
| K28. | S631-014004 | [1] | O-RING |
| 29 | P220-110103 | [1] | PLUG-HEX |
| 30 | 31Y1-32380 | [1] | BAND ASSY-R |
| 30-1. | 31Y1-32390 | [1] | BAND SUB ASSY |
| 30-2. | 31YC-31460 | [1] | BAND |
| 30-3. | S015-120452 | [2] | BOLT-HEX |
| 30-4. | S411-120002 | [2] | WASHER-SPRING |
| 30-5. | S070-053442 | [1] | U-BOLT |
| 30-6. | S205-101002 | [2] | NUT-HEX |
| 30-7. | S411-100002 | [2] | WASHER-SPRING |
| 31 | 31Y1-32400 | [1] | BAND ASSY-B |
| 31-1. | 31Y1-32410 | [1] | BAND SUB ASSY |
| 31-2. | 31Y1-32420 | [1] | BAND SUB ASSY |
| 31-3. | S015-120452 | [2] | BOLT-HEX |
| 31-4. | S411-120002 | [2] | WASHER-SPRING |
| 31-5. | S070-053442 | [1] | U-BOLT |
| 31-6. | S205-101002 | [2] | NUT-HEX |
| 31-7. | S411-100002 | [2] | WASHER-SPRING |
| 32 | 31Y1-32430 | [1] | PIPE ASSY-R |
| K33. | Y171-024004 | [1] | O-RING |
| 34 | S107-120554 | [4] | BOLT-SOCKET |
| K. | 31Y1-32450 | [1] | SEAL KIT |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
Product Show:
