31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 31Y1-32670 HYUNDAI R250LC-9, R250LC-9A, R260LC-9S, R260LC-9S(BRAZIL), HX260L |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability | 500 Piece per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Boom Cylinder Service Kit | Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
|---|---|---|---|
| Part No. | 31Y1-32670, 31Y132670 | Sample | Available |
| Shipping Mode | By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.) | Warranty | Unavailable |
| High Light | HYUNDAI Seal Kit,31Y1-32670 Boom Seal Kit,Hyundai Cylinder Service Kit |
||
Product Description
31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
| Product Name | Boom Cylinder Service Kit |
| Part Number | 31Y1-32670, 31Y132670 |
| Model |
9-SERIES CRAWLER EXCAVATOR R250LC-9, R250LC-9A, R260LC-9S, R260LC-9S(BRAZIL) F-SERIES CRAWLER EXCAVATOR HX260L Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q7-50110 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31Q7-50120 | [1] | BOOM CYLINDER ASSY-RH |
| *-1. | 31Y1-32460 | [1] | BOOM CYL SUB ASSY |
| 1 | 31Y1-32470 | [1] | TUBE ASSY |
| 2 | 31Y1-32540 | [1] | ROD ASSY |
| 3 | 31Y1-32580 | [1] | GLAND |
| 4 | S732-095030 | [1] | BUSHING-DD2 |
| 5 | Y191-102000 | [1] | RING-SNAP |
| K6. | Y220-095013 | [1] | SEAL-ROD |
| K7. | Y180-095020 | [1] | RING-BACK UP |
| K8. | Y240-095012 | [1] | RING-BUFFER |
| K9. | Y110-095011 | [1] | WIPER-DUST |
| 10 | Y190-109000 | [1] | RING-SNAP |
| K11. | S631-125004 | [1] | O-RING |
| K12. | 31YC-BP125 | [1] | RING-BACK UP |
| 13 | 31YC-26080 | [1] | RING-CUSHION |
| 14 | 31Y1-30270 | [1] | PISTON |
| K15. | Y420-135000 | [1] | SEAL-PISTON |
| K16. | Y310-135303 | [2] | RING-WEAR |
| K17. | Y440-135002 | [2] | RING-DUST |
| K18. | S632-070004 | [1] | O-RING |
| K19. | S642-070003 | [2] | RING-BACK UP |
| 20 | 31YC-68040 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | S632-135004 | [1] | O-RING |
| 23 | S109-180854 | [12] | BOLT-SOCKET |
| 24 | 61Q6-97610 | [1] | BUSHING-PIN |
| 25 | 61Q6-97410 | [1] | BUSHING-PIN |
| K26. | Y020-100100 | [2] | SEAL-DUST,DLI,KPU |
| K27. | Y020-090100 | [2] | SEAL-DUST,DLI,KPU |
| 28 | 31Y1-32590 | [1] | BAND ASSY |
| 28-1. | 31Y1-32600 | [1] | BAND SUB ASSY |
| 28-2. | 31YC-32330 | [1] | BAND |
| 28-3. | S011-100352 | [4] | BOLT-HEX |
| 28-4. | S411-100002 | [4] | WASHER-SPRING |
| 28-5. | S070-052738 | [2] | U-BOLT |
| 28-6. | S205-101002 | [4] | NUT-HEX |
| 28-7. | S411-100002 | [4] | WASHER-SPRING |
| 29 | 31Y1-32610 | [1] | PIPE ASSY-R,LH |
| 29 | 31Y1-32620 | [1] | PIPE ASSY-R,RH |
| 30 | 31Y1-32630 | [1] | PIPE ASSY-B,LH |
| 30 | 31Y1-32640 | [1] | PIPE ASSY-B,RH |
| K31. | Y171-024004 | [2] | O-RING |
| 32 | S107-120554 | [8] | BOLT-SOCKET |
| K. | 31Y1-32670 | [1] | SEAL KIT |
Storage Precautions:
- When storing seals, please pay attention to the following items:
- Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
- Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
- When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
- Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
- Do not place the seal near the motor or where ozone is generated.
- Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
- The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
- The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.

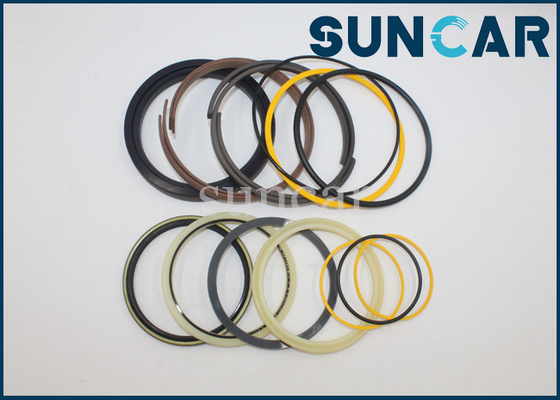

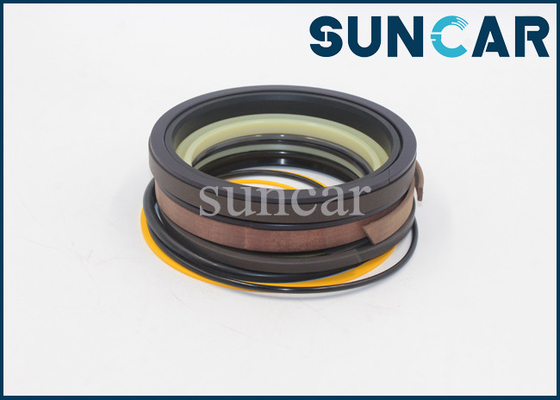

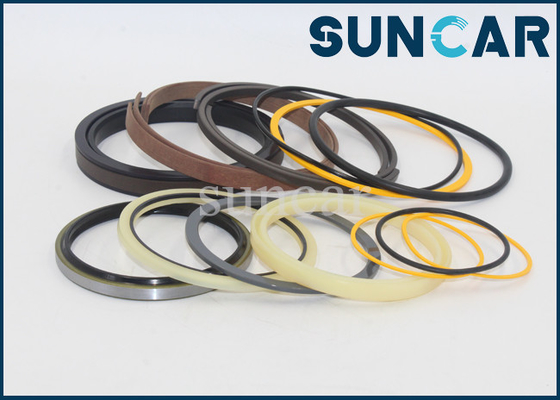

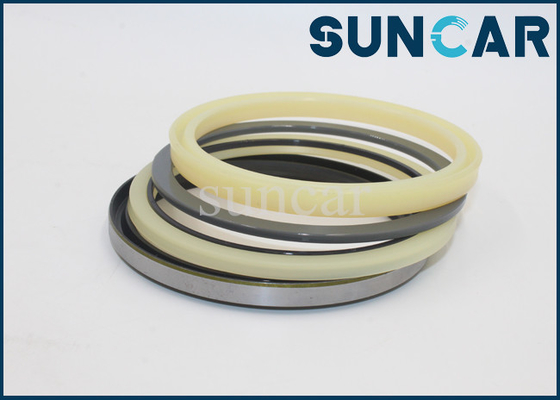

Product Show:
