201-63-02010 2016302010 Boom Cylinder Seal Kit Komatsu For PC60-5 PC60L-5 Boom Cylinder Seal Repair Kit
Place of Origin | CHINA(MAINLAND) |
---|---|
Brand Name | SUNCAR |
Model Number | 201-63-02010 2016302010 Komatsu PC60-5, PC60L-5, PW60-3, PW60S-3 |
Minimum Order Quantity | Acceptable trial order |
Price | Negotiation |
Packaging Details | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment Terms | T/T, Paypal, Transfer,Western Union |
Supply Ability | 7000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPart Number | 201-63-02010 2016302010 | Product Name | Boom Cylinder Seal Kit |
---|---|---|---|
Feature | Oil & High Pressure & High Temperature Resistant | CertifiC.A.Tion | ISO9001:2000 |
Size | Standard | Shipping Mode | By Air, By Sea ,by Express (DHL, Fedex, UPS ,TNT Etc.) |
High Light | Boom Cylinder Seal Kit,201-63-02010 Repair Kit,KOMATSU Seal Kit |
201-63-02010 2016302010 Boom Cylinder Seal Kit Komatsu For PC60-5 PC60L-5 Boom Cylinder Seal Repair Kit
Product Name | 201-63-02010 2016302010 Boom Cylinder Seal Kit |
Model Number |
Komatsu PC60-5, PC60L-5, PW60-3, PW60S-3 |
Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
Brand | SUNCAR/OEM |
MOQ | Negotiation |
Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
Delivery Time | Within 3 days after payment received(public holiday excluded) |
Availability | In Stock |
Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
Sample | Available |
Condition | 100% Brand New |
After-sales Service | Online support |
Related parts | Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
Supply Ability | 7000 Piece/Pieces per Month |
Seal classifiC.A.Tion:
Seals can be divided into two C.A.Tegories: static seals between relatively static joint surfaces and dynamic seals between relatively moving joint surfaces.
There are three main types of static seals: point seals, glue seals and contact seals. According to the working pressure, static seals can be divided into medium and low pressure static seals and high pressure static seals. Medium and low pressure static seals are usually made of softer materials and wider gaskets, while high pressure static seals use hard materials and metal gaskets with a narrow contact width.
Dynamic seals can be divided into two basic types: rotary seals and reciproC.A.Ting seals. According to whether the seal is in contact with the parts that move relative to it, it can be divided into contact seals and non-contact seals. Generally speaking, the sealing performance of the contact seal is good, but limited by friction and wear, it is suitable for the occasions where the linear velocity of the sealing surface is low. Non-contact seals have poor sealing properties and are suitable for higher speeds.

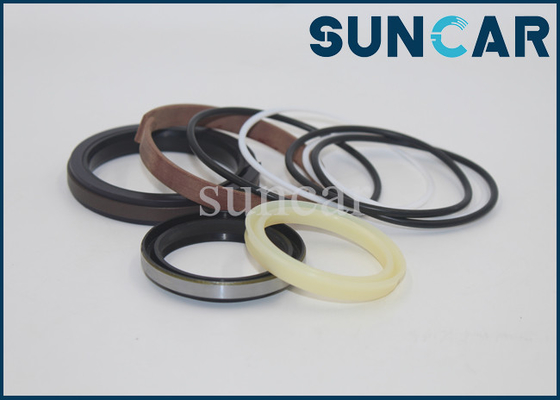

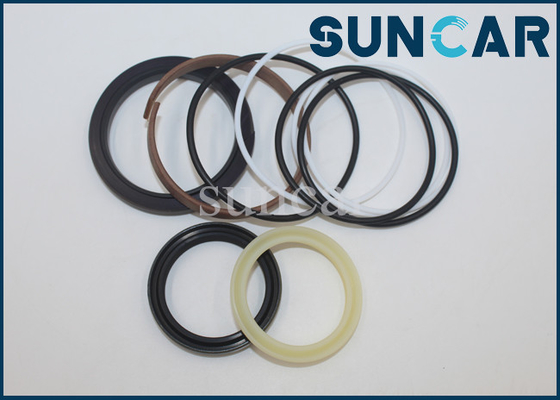

Product Show:
Influencing factors of seals:
Hydraulic seals play a vital role in the integration of hydraulics and pneumatics. If the seals of a hydraulic and pneumatic component product are not good enough, then this hydraulic and pneumatic component product is not a good product. There are many factors that affect seals.
(1) First of all, pressure is an important factor affecting the quality of the seal. The level of pressure and the length of the pressure cycle change have a great impact on the damage of the seal (such as extrusion). The higher the pressure, the greater the impact of other factors on the performance of the seal, such as temperature, speed, seal material, clearance between the piston and cylinder, and clearance between the piston and cylinder head.
(2) Another one is temperature and friction. It is difficult to describe the maximum use temperature and minimum use temperature of a seal material, because it is the result of the combined influence of a series of factors. For the different working temperatures of the piston and the piston rod, they should be selected differently. Another is the surface roughness of the seal product, the characteristics of the surface, the pressure, the medium, the temperature, the material of the seal, the type of the seal and the speed of movement, which are all factors that affect the seal.
(3)The last one is surface treatment. Experience has shown that the characteristics of the surface of the cylinder piston and piston rod have a great influence on the life of the seal. Surface properties are often defined by the value of surface roughness RA, which is the arithmetic mean of the absolute value of the deviation of the surface shape from the centerline. However, these values do not fully represent the effect of the surface condition on the seal, because even with the same roughness, different surface shape features can cause different degrees of seal wear to the seal.

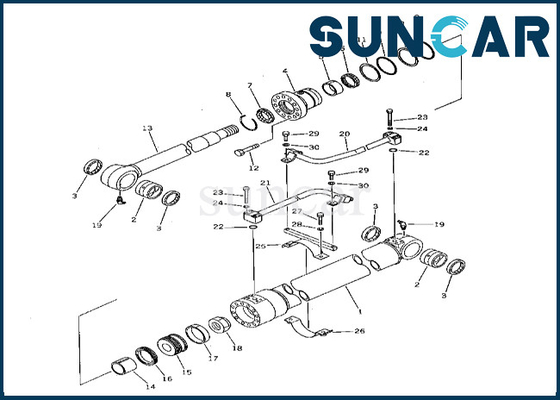

Related Part:
POS. | Number | Name | Qty. |
201-63-02010 | BOOM CYLINDER ASSEMBLY | 1 | |
1 | 201-63-56341 | • CYLINDER | 1 |
2 | 707-76-65040 | • BUSHING | 2 |
3 | 07145-00065 | • SEAL,DUST | 4 |
4 | 707-28-10170 | • HEAD,CYLINDER | 1 |
5 | 07177-06530 | • BUSHING | 1 |
6 | 707-51-65211 | • PACKING,ROD | 1 |
7 | 144-63-92170 | • SEAL,DUST | 1 |
8 | 07179-00088 | • RING,SNAP | 1 |
9 | 07000-12095 | • O-RING | 2 |
10 | 07146-02096 | • RING,BACK-UP | 1 |
11 | 707-35-91010 | • RING,BACK-UP | 1 |
12 | 01010-81450 | • BOLT | 12 |
13 | 201-63-56320 | • ROD,PISTON | 1 |
14 | 707-71-50540 | • PLUNGER | 1 |
15 | 707-36-10261 | • PISTON | 1 |
16 | 707-44-10080 | • RING,PISTON | 1 |
17 | 07155-01025 | • RING,WEAR | 1 |
18 | 07165-14547 | • NUT | 1 |
19 | 07020-00675 | FITTING,GREASE | 2 |
20 | 201-63-56381 | TUBE | 1 |
21 | 201-63-56371 | TUBE | 1 |
22 | 07000-13025 | O-RING | 2 |
23 | 01010-50850 | BOLT | 8 |
24 | 01602-20825 | WASHER,SPRING | 8 |
25 | 707-88-99691 | BRACKET | 1 |
26 | 707-88-97720 | BAND | 1 |
27 | 01010-51035 | BOLT | 2 |
28 | 01602-21030 | WASHER,SPRING | 2 |
29 | 01010-51020 | BOLT | 2 |
30 | 01643-31032 | WASHER | 2 |
