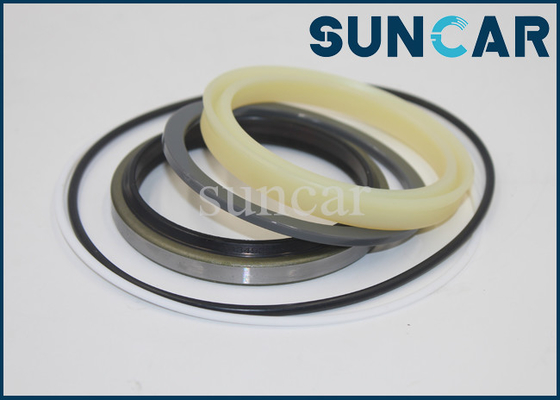

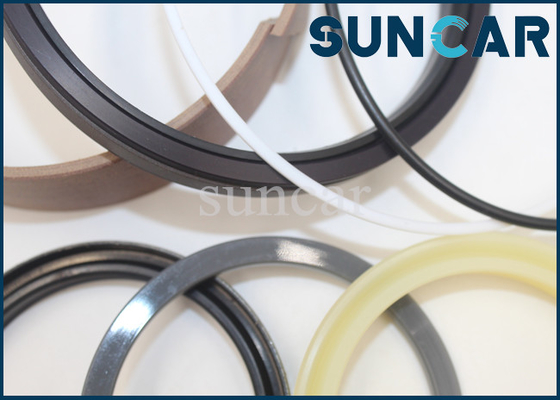

707-99-76131 7079976131 Komatsu Boom Cylinder Seal Kit For PC600-8 PC600-8R Boom Cylinder Repair Kit
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 707-99-76131 7079976131 Komatsu PC600-8, PC600-8R, PC600LC-8R, PC600LC-8 |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Acceptable trial order |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | T/T, Paypal, Transfer,Western Union |
| Supply Ability | 6000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Number | 707-99-76131, 7079976131 | Product Name | Boom Cylinder Seal Kit |
|---|---|---|---|
| Feature | Oil & High Pressure & High Temperature Resistant | MOQ | Negotiation |
| CertifiC.A.Tion | ISO9001：2000 | Size | Standard |
Product Description
707-99-76131 7079976131 Komatsu Boom Cylinder Seal Kit For PC600-8 PC600-8R Boom Cylinder Repair Kit
| Product Name | 707-99-76131 7079976131 Boom Cylinder Seal Kit |
| Model Number |
Komatsu PC600-8, PC600-8R, PC600LC-8R, PC600LC-8 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
| Brand | SUNCAR/OEM |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
| Sample | Available |
| Condition | 100% Brand New |
| After-sales Service | Online support |
| Related parts | Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
| Supply Ability | 6000 Piece/Pieces per Month |
| MOQ | Negotiation |
| Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
| Delivery Time | Within 3 days after payment received(public holiday excluded) |
| Availability | In Stock |
Product Show:

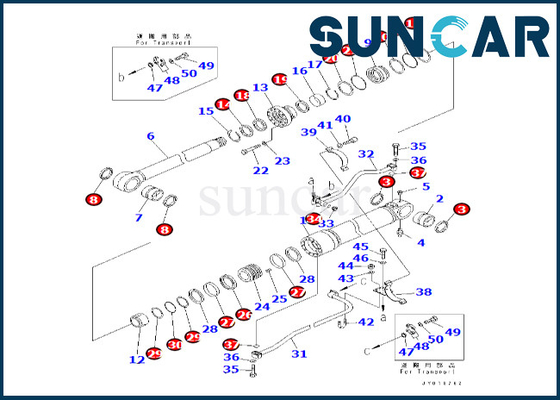

Related Part:
| POS. | Number | Name | Qty. |
| G-1 | 707-01-XR610 | CYLINDER GROUP,L.H. (FINAL COATING) | 1 |
| 707-01-0J630 | BOOM CYLINDER ASSEMBLY | 1 | |
| 1 | 707-13-18950 | • CYLINDER | 1 |
| 2 | 707-76-11160 | • BUSHING | 1 |
| 3 | 07145-00110 | • SEAL,DUST (KIT) | 2 |
| 4 | 07020-00000 | • FITTING,GREASE | 1 |
| 5 | 07043-00108 | • PLUG | 1 |
| 6 | 707-58-12660 | • ROD,PISTON | 1 |
| 7 | 707-76-12530 | • BUSHING | 1 |
| 8 | 07145-00125 | • SEAL,DUST (KIT) | 2 |
| 9 | 707-71-32900 | • COLLAR | 1 |
| 10 | 707-35-91840 | • RING,BACK-UP (KIT) | 2 |
| 11 | 07000-15175 | • O-RING (KIT) | 1 |
| 12 | 707-71-61330 | • PLUNGER | 1 |
| 13 | 707-27-18930 | • HEAD,CYLINDER | 1 |
| 14 | 707-56-12740 | • SEAL,DUST (KIT) | 1 |
| 15 | 07179-13136 | • RING,SNAP | 1 |
| 16 | 707-52-90981 | • BUSHING | 1 |
| 17 | 07179-13126 | • RING,SNAP | 1 |
| 18 | 707-51-12030 | • PACKING,ROD (KIT) | 1 |
| 19 | 707-51-12650 | • RING,BUFFER (KIT) | 1 |
| 20 | 707-35-91840 | • RING,BACK-UP (KIT) | 1 |
| 21 | 07000-15175 | • O-RING (KIT) | 1 |
| 22 | 01011-82400 | • BOLT | 12 |
| 23 | 707-88-75410 | • WASHER | 12 |
| 24 | 707-36-18520 | • PISTON | 1 |
| 25 | 01310-01225 | • SCREW | 1 |
| 26 | 707-44-18250 | • RING,PISTON (KIT) | 1 |
| 27 | 707-39-18510 | • RING,WEAR (KIT) | 2 |
| 28 | 707-44-18920 | • RING | 2 |
| 29 | 07001-05110 | • RING,BACK-UP (KIT) | 2 |
| 30 | 07000-15110 | • O-RING (KIT) | 1 |
| 31 | 707-86-13240 | TUBE,L.H. | 1 |
| 32 | 707-86-00950 | TUBE,L.H. | 1 |
| 33 | 707-87-14700 | PLUG | 1 |
| 34 | 07002-63034 | O-RING (KIT) | 1 |
| 35 | 07372-21060 | BOLT | 8 |
| 36 | 01643-51032 | WASHER | 8 |
| 37 | 07000-13035 | O-RING (KIT) | 2 |
| 38 | 707-88-28240 | BRACKET | 1 |
| 39 | 707-88-26120 | BAND | 1 |
| 40 | 07372-21240 | BOLT | 4 |
| 41 | 01643-51232 | WASHER | 4 |
| 42 | 07283-33442 | CLIP | 1 |
| 43 | 01643-31032 | WASHER | 2 |
| 44 | 01597-01009 | NUT | 2 |
| 45 | 01010-81025 | BOLT | 2 |
| 46 | 01643-31032 | WASHER | 2 |
| 47 | 707-88-33040 | CAP | 2 |
| 48 | 07371-31049 | FLANGE,SPLIT | 4 |
| 49 | 07372-21035 | BOLT | 8 |
| 50 | 01643-51032 | WASHER | 8 |
| 707-99-76131 | SERVICE KIT | 1 |
Precautions:
1. Select the appropriate seal material and hydraulic oil, as well as the adaptability to the working temperature and the compatibility of the oil.
2. The geometric position accuracy (concentricity) of the sliding parts relative to the seal is high, the material is good (such as hard chrome plating) and the surface roughness is fine, which can prolong the service life.
(1) For oil seals used in hydraulic pumps and motor journals, it is not only required that the roughness of the sliding surface be within Ra of 0.25m, but also that the surface should be plated with hard chrome, and the oil seal lip should be properly adjusted according to the specific situation during specific use. The radial spring force makes it moderately tight, and a mounting sleeve or a thin gasket should be used to protect the sealing ring during installation to prevent the lip from rolling and twisting, causing the spring to slip out.
(2) The inner surface of the hydraulic cylinder is usually processed by rolling, which not only improves the surface roughness, but also makes the surface hardened by cold work, which is beneficial to prolong the service life of the sealing ring. In addition, the pressure used, the length and type of the sliding surface also have a great influence on the service life. Therefore, the "regular inspection" time should be decided according to these conditions.
(3) The sealing surface is required to be well lubriC.A.Ted to prevent dirt from invading. The use of fluids that meet the specified cleanliness levels and the correct installation method are also necessary conditions.
