20T-26-81220 20T2681220 Grease Seal For PC40MR-2 PC50MR-2 Komatsu Swing Machinery Oversea Spec.

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number 20T-26-81220 KOMATSU PC45MR-3, PC55MR-3, PC40MR-1, PC40MRX-1, PC40MR-2, PC40R-8, PC45MR-1, PC45MRX-1, PC45R-8, PC50MR-2, PC50UD-2, PC50UG-2, PC50UU-2, PC50UUM-2, PC58SF-1
Minimum Order Quantity 100 PCS
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 500 Piece per Week
Product Details
Products Name Grease Seal Part Number 20T-26-81220, 20T2681220
Warranty Unavailable Sample Available
Application Swing Machinery Condition New, Genuine New
High Light

20T2681220 Grease Seal

,

20T-26-81220 Komatsu Seals

,

Swing Machinery Seals

Leave a Message
Product Description

20T-26-81220 20T2681220 Grease Seal For PC40MR-2 PC50MR-2 Komatsu Swing Machinery Oversea Spec.



Product Name Grease Seal
Part Number 20T-26-81220, 20T2681220
Model

KOMATSU PC45MR-3, PC55MR-3, PC40MR-1, PC40MRX-1,

PC40MR-2, PC40R-8, PC45MR-1, PC45MRX-1, PC45R-8,

PC50MR-2, PC50UD-2, PC50UG-2, PC50UU-2, PC50UUM-2,

PC58SF-1

Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
Condition New, genuine new
Sample Available
Applicable Industries

Building material shops, machinery repair shops, retail,

construction work...

Feature High sealing performance/ wear resistance
Application Swing Machinery



Basic Requirements For Sealing Materials:

  • The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
  • Have certain mechanical properties, such as tensile strength, elongation, etc.;
  • Appropriate elasticity and hardness, small compression set;
  • High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
  • It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
  • Good oxygen resistance and aging resistance, durable;
  • Abrasion resistance, no corrosion to metal;
  • Easy to shape and process, low price.



Product Show:

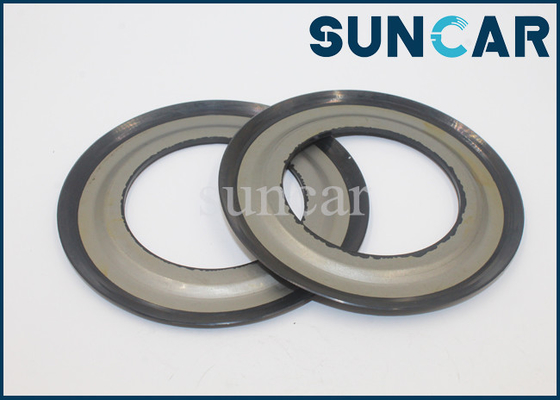

20T-26-81220 20T2681220 Grease Seal For PC40MR-2 PC50MR-2 Komatsu Swing Machinery Oversea Spec. 0

Pos. Part No Parts Name Qty
  22M-26-21002 SWING MACHINERY A. 1
  22M-26-21001 SWING MACHINERY A. 1
1 22M-26-22310 • CARRIER 1
2 22M-26-22410 • GEAR 3
3 22M-26-29420 • SPACER 3
4 22M-26-29410 • BEARING 3
5 22M-26-22560 • WASHER 12
6 20S-26-71190 • RING 6
7 22M-26-22320 • CARRIER 1
8 22M-26-22420 • GEAR 3
9 22M-26-29440 • SPACER 3
10 22M-26-29430 • BEARING 3
11 22M-26-22141 • NUT 1
11 22M-26-22140 • NUT 1
12 22M-26-22131 • SHAFT 1
12 22M-26-22130 • SHAFT 1
13 14X-14-19241 • BEARING 1
14 20U-26-22160 • BEARING 1
15 22M-26-29110 • OIL SEAL 1
16 22M-26-21111 • CASE 1
17 01252-61245 • BOLT 5
18 01643-51232 • WASHER 5
19 20T-26-81220 • SEAL 1
20 22M-26-22211 • GEAR 1
21 22M-26-22220 • GEAR 1
22 07049-01215 • PLUG 2
23 04064-03818 • RING 1
24 04020-01434 • PIN 2
25 708-7R-00370 • MOTOR ASS'Y 1
26 20S-26-81310 • RING 1
27 708-7T-51210 • O-RING 1
28 02781-0031D • UNION 1
29 02782-10422 • ELBOW 1
30 02783-10422 • ELBOW 1
31 21W-62-43960 • ELBOW 1
32 419-43-37570 • UNION 1
33 02896-11009 • O-RING 1
34 02896-11012 • O-RING 2
35 02896-11008 • O-RING 2
36 07002-12034 • O-RING 2
37 07002-11423 • O-RING 2



Product Show:

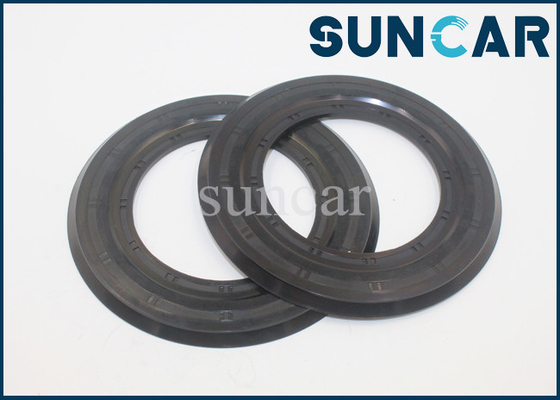

20T-26-81220 20T2681220 Grease Seal For PC40MR-2 PC50MR-2 Komatsu Swing Machinery Oversea Spec. 1

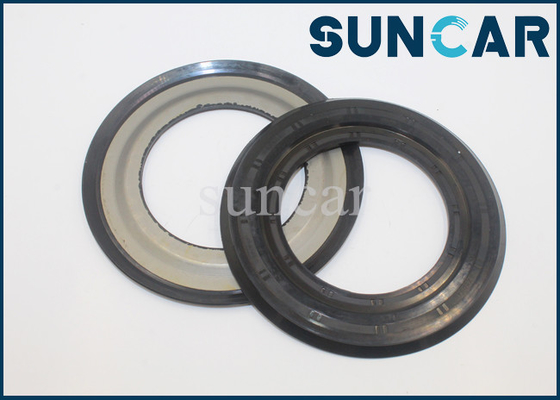

20T-26-81220 20T2681220 Grease Seal For PC40MR-2 PC50MR-2 Komatsu Swing Machinery Oversea Spec. 2
