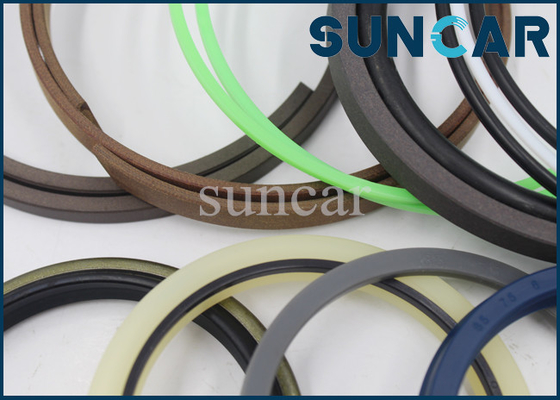

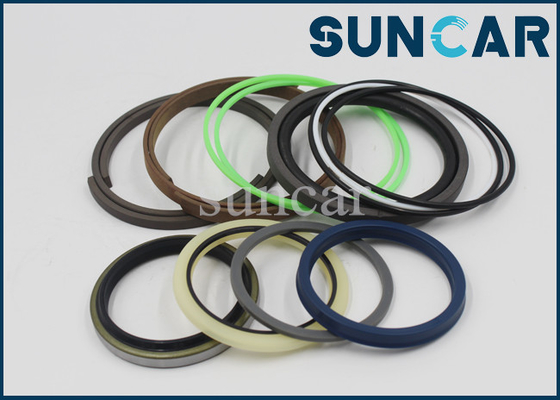

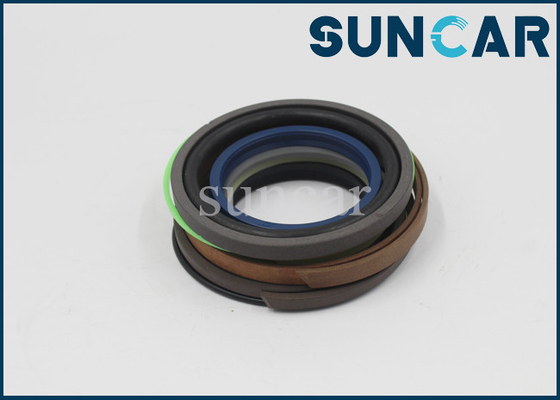

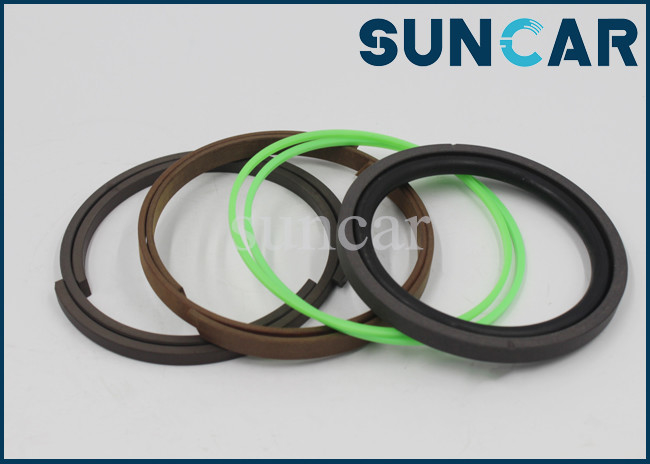

SK100 SK120LC 2438U1097R300 Bucket Cylinder Seal Kit Kobelco Hydraulic Repair Kits
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | 2438U1097R300 Kobelco SK200LC, SK200, SK100, SK220LC, SK120LC, SK220 |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
| Supply Ability | 800 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Bucket Cylinder Seal Kit | Part Number | 2438U1097R300 |
|---|---|---|---|
| Rod | 65 Mm | Bore | 95 Mm |
| Cylinder | 2438U1097F1.F2 | Feature | Resistance To High Pressure, Oil, Weather, Abrasion, Solvent |
| High Light | KOBELCO Seal Kit,2438U1097R300 Hydraulic Repair Kits,Bucket Cylinder Seal Kit |
||
Product Description
SK100 SK120LC 2438U1097R300 Bucket Cylinder Seal Kit Kobelco Hydraulic Repair Kits
| Product Name | Bucket Cylinder Seal Kit |
| Part Number | 2438U1097R300 |
| Model Number |
KOBELCO SK200LC, SK200, SK100, SK220LC, SK120LC, SK220 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance, wear resistance, heat resistance |
| AppliC.A.Tion | Bucket |
| Rod | 65 MM |
| Bore | 95 MM |
| Cylinder No. | 2438U1097F1.F2 |
How To Buy:
Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.
- "Product name + part number + quantity".
- Expected packaging: general packaging or customized packaging.
Step 2: Quotation and invoice
- We will send the quotation to you as soon as possible. Once confirmed, we will issue an official invoice and provide bank information.
Step 3: Payment
- Pay to our account and send us a bank statement.
- Payment method: Western Union, T/T, Paypal, Transfer.
Step 4: Delivery
- After receiving the payment, we will arrange the goods to be delivered to your designated address in China as soon as possible.
Step 5: Receipt
- You just need to wait patiently for the goods.
Related Parts:
| Pos. | Part No | Qty | Parts name |
| . . | 2438U1097F1 | [1] | CYLINDER ASSY (BUCKET) |
| . . | 2438U1097F2 | [1] | CYLINDER |
| 1 | 2438U1097S1 | [1] | REPAIR KIT |
| 2 | 2438U1097S2 | [2] | BUSHING |
| 3 | 2438U1097S3 | [1] | PISTON ROD |
| 4 | 2438U992S5 | [1] | PISTON |
| 5 | 2438U992S6 | [2] | RING |
| 6 | 2438U704S8 | [2] | WEAR RING |
| 7 | 2438U704S6 | [1] | SEAL |
| 8 | 2438U704S7 | [1] | O-RING F2: 1 |
| 9 | ZD12G06500 | [1] | O-RING |
| 10 | ZD75G06500 | [2] | BACK-UP RING |
| 11 | 2438U738S10 | [1] | NUT |
| 12 | 2438U974S13 | [1] | LOCKING RING |
| 13 | 2438U1097S13 | [1] | COVER |
| 14 | ZD12G09500 | [1] | O-RING |
| 15 | ZD12G09000 | [1] | O-RING |
| 16 | ZD75G09000 | [1] | RING |
| 17 | B38K0038E10 | [1] | CLIP |
| 18 | 2438U1097S18 | [1] | BUSHING |
| 19 | 2438U1097S19 | [1] | SEAL |
| 20 | 45Z91D16 | [1] | O-RING |
| 21 | 2438U897S18 | [1] | PACKING |
| 22 | 2438U908S27 | [1] | SEAL |
| 23 | ZS23C14055 | [8] | SCREW,Hex Socket Head |
| 24 | 2438U992S25 | [1] | BRACKET |
| 25 | 2438U992S26 | [2] | BAND |
| 26 | 2438U992S27 | [1] | BRACKET |
| 27 | ZS16C10030 | [4] | CAPSCREW |
| 28 | ZW26X10000 | [4] | LOCK WASHER |
| 29 | 2438U697S10 | [4] | SEAL |
| 30 | 2438U515S26 | [1] | BACK-UP RING |
| 31 | 2438U1097S29 | [1] | SEAL |
| . . | 2438U1097R100 | [1] | REPAIR KIT |
| . . | 2438U1097R200 | [1] | REPAIR KIT |
| . . | 2438U1097R300 | [1] | REPAIR KIT |
