S19000-43899 Boom Cylinder Repair Seal Kit For SK024 KOBELCO Mini Excavators
| Place of Origin | CHINA(MAINLAND) |
|---|---|
| Brand Name | SUNCAR |
| Model Number | S19000-43899 Kobelco SK024 |
| CertifiC.A.Tion | ISO9001 |
| Minimum Order Quantity | Trial order acceptable |
| Price | Negotiation |
| Packaging Details | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P, Paypal |
| Supply Ability | 800 set per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Boom Cylinder Repair Seal Kit | Part Number | S19000-43899 |
|---|---|---|---|
| Warranty | Unavailable | Sample | Available |
| Bore | 75 MM | Rod | 40 MM |
| High Light | KOBELCO Seal Kit,Boom Cylinder Repair Seal Kit,S19000-43899 Excavator Service Kit |
||
Product Description

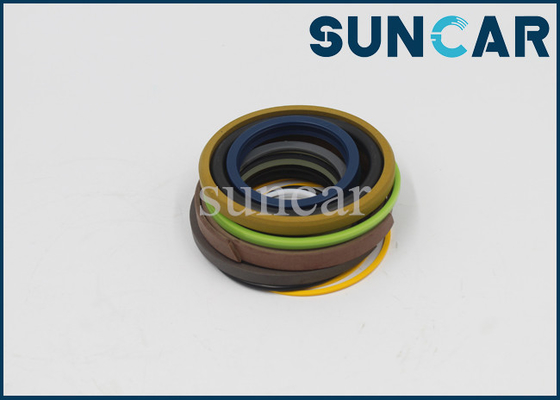

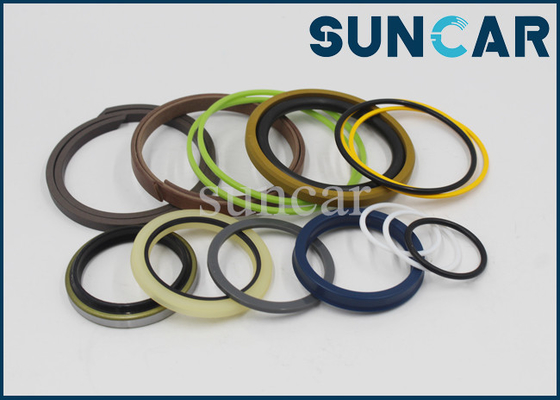

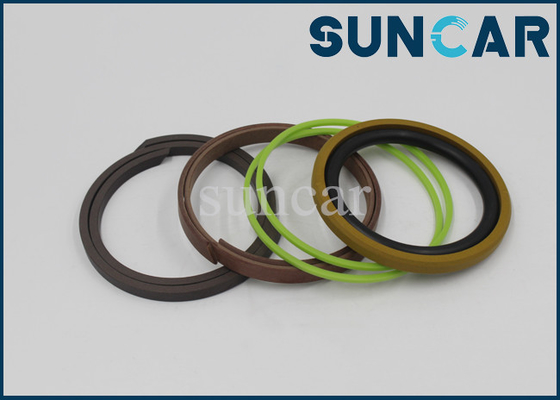

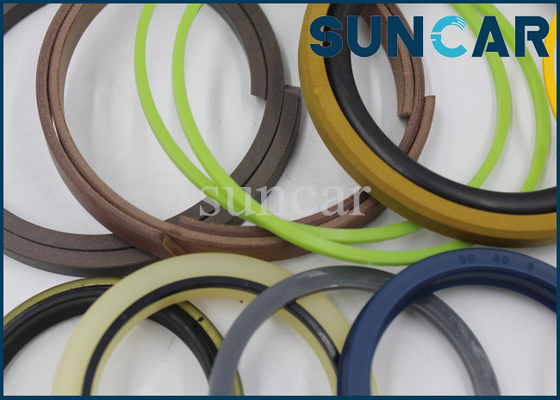

S19000-43899 Boom Cylinder Repair Seal Kit For SK024 KOBELCO Mini Excavators
| Product Name | Boom Cylinder Repair Seal Kit |
| Part Number | S19000-43899 |
| Model Number | KOBELCO SK024 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance, wear resistance, heat resistance |
| AppliC.A.Tion | Boom |
| Rod | 40 MM |
| Bore | 75 MM |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
Our Product Range:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit
Related Parts:
| Pos. | Part No | Qty | Parts name |
| . . | S19000-52300 | [1] | CYLINDER ASSY. |
| 1 | XS14102-20750 | [1] | PACKING, PISTON |
| 2 | XS14105-40559 | [1] | PACKING, ROD |
| 3 | XS19000-32433 | [1] | SEAL, DUST |
| 4 | XS14112-55403 | [1] | RING, BACK UP |
| 5 | XS14210-30750 | [1] | RING, BACK UPP75 T3 |
| 6 | XS14201-10850 | [1] | O-RING (G85 18) |
| 7 | XS14200-10750 | [1] | O-RING (P75 1B) |
| 8 | XS14201-10800 | [1] | O-RING (GB0 1B) |
| 9 | XS14201-10300 | [1] | O-RING (G30 1B) |
| 10 | S14107-07510 | [2] | WEAR RING |
| 11 | S19000-35819 | [1] | LOCKING PLATE |
| 12 | S19000-35815 | [1] | SPACER |
| 13 | S19000-28509 | [1] | NUT |
| 14 | S19000-52307 | [1] | TUBE |
| 15 | S19000-43806 | [1] | PISTON |
| 16 | S19000-43855 | [1] | HOLDER, PACKING |
| 17 | S19000-43805 | [1] | BEARING, CUSHION |
| 18 | S19000-43804 | [1] | RETAINER |
| 19 | S19000-43803 | [1] | COVER, ROD |
| 20 | S19000-03720 | [1] | BUSHING |
| 21 | S19000-03702 | [1] | BUSHING |
| 22 | S19000-43801 | [1] | ROD, PISTON |
| 23 | S14332-00040 | [4] | SPARE PART |
| 24 | S12100-00655 | [1] | PIN, SPLIT |
| 25 | S13330-04030 | [1] | BUSHING |
| 26 | S15600-01675 | [1] | LUBE NIPPLE |
| 27 | S15600-01000 | [1] | LUBE NIPPLE |
| . . | S19000-43899 | [1] | SEAL KIT |
Storage Precautions:
When storing seals, please pay attention to the following items:
- Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
- Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
- When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
- Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
- Do not place the seal near the motor or where ozone is generated.
- Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
- The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
- The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.
