Hydraulic Oil Seal ZGAQ-02057 Shaft Seal For Hyundai Wheel Excavator R140W-7 R170W-9 R210W-9

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number ZGAQ-02057 HYUNDAI R140W-7, R140W-7A, R170W-7, R170W-7A, R200W-7, R200W-7A...
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability 1500 pcs per month
Product Details
Part Number ZGAQ-02057 Product Name Hyundai Shaft Oil Seal
Size 80*110*11 Category Group Hydraulic Oil Seal, Shaft Seal
Sample Available Feature High Sealing Performance, Wear Resistance, Heat Resistance
High Light

Hyundai Oil Seal

,

ZGAQ-02057 Shaft Seal

,

Hyundai Wheel Excavator Oil Seal

Leave a Message
Product Description

Hydraulic Oil Seal ZGAQ-02057 Shaft Seal For Hyundai Wheel Excavator R140W-7 R170W-9 R210W-9



Product Name Hyundai Shaft Oil Seal
Part Number ZGAQ-02057
Model Number

7 SERIES WHEEL EXCAVATOR R140W-7, R140W-7A,

R170W-7, R170W-7A, R200W-7, R200W-7A;

9-SERIES WHEEL EXCAVATOR R140W-9, R140W-9A,

R140W-9S, R160W-9A, R170W-9, R170W-9S, R180W-9A,

R180W-9S, R210W-9, R210W-9A, R210W-9AMH,

R210W-9MH, R210W9S;

F-SERIES WHEEL EXCAVATOR HW140, HW210 Hyundai

Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
Category Group Hydraulic Oil Seal, Shaft Seal
Condition New, genuine new
Sample Available
Applicable Industries

Building material shops, machinery repair shops, retail,

construction work...

Feature High sealing performance, wear resistance, heat resistance
Size 80*110*11



Related Parts:

Hydraulic Oil Seal ZGAQ-02057 Shaft Seal For Hyundai Wheel Excavator R140W-7 R170W-9 R210W-9 0

Pos. Part No Qty Parts Name
*. @ [1] TRANSMISSION
10 ZGAQ-02056 [1] COVER
30 ZGAQ-02053 [2] FLANGE-OUTPUT
35 ZGAQ-01091 [1] FLANGE-OUTPUT
50 ZGAQ-02054 [1] SHEET
70 ZGAQ-01093 [8] STUD
90 ZGAQ-01086 [1] BEARING-BALL
110 ZGAQ-01039 [1] RING-RETAINER
130 ZGAQ-02057 [1] SEAL-SHAFT
170 ZGAQ-01997 [2] O-RING
190 ZGAQ-02058 [1] GEAR-OUTPUT
210 ZGAQ-02059 [1] DEFLECTOR-OIL
250 ZGAQ-02060 [1] SHEET-SCREEN
270 ZGAQ-02061 [5] SCREW-HEX
310 ZGAQ-01094 [1] O-RING
330 ZGAQ-02062 [1] WASHER
350 ZGAQ-00447 [2] SCREW-HEX
370 ZGAQ-01086 [1] BEARING-BALL
390 ZGAQ-02057 [1] SEAL-SHAFT
410 ZGAQ-01094 [1] O-RING
430 ZGAQ-01095 [1] WASHER
450 ZGAQ-00447 [2] SCREW-HEX



Measures For Oil Leakage Due To Inadequate Oil Seal:

1. Master and recognize the basic knowledge of fake and inferior products, and purchase high-quality and standard oil seals.

2. During installation, if the roughness of the outer surface of the shaft diameter is low or there are defects such as rust, burrs, etc., smooth it with a fine emery cloth or whetstone; apply clean engine oil or grease to the lip of the oil seal or the corresponding position of the shaft diameter. Apply sealant to the outer ring of the oil seal, wrap the key way on the shaft with hard paper to avoid scratching the lip of the oil seal, and use a special tool to rotate and press the oil seal inwards. Do not smash the hard seal to prevent deformation of the oil seal or squeeze the spring and fail; If there is lip cuffing, the spring falls off and the oil seal is skewed, It must be removed and reinstalled. It should be noted that when the shaft diameter is not worn and the spring force of the oil seal spring is sufficient, do not tighten the inner spring without authorization.

3. The oil seals applied to machinery generally have to be inspected, maintained and maintained when the general working conditions are poor, the ambient temperature difference is large, the dust is excessive, and the vibration of the machine tool frequently changes the stress condition of the machine parts.

4. If the shaft diameter and bearing are seriously worn; The rubber seal oil is aging or the spring is invalid, etc., repair and replace the corresponding parts in time.

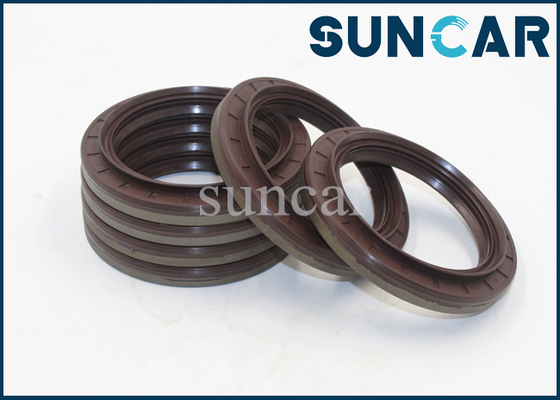

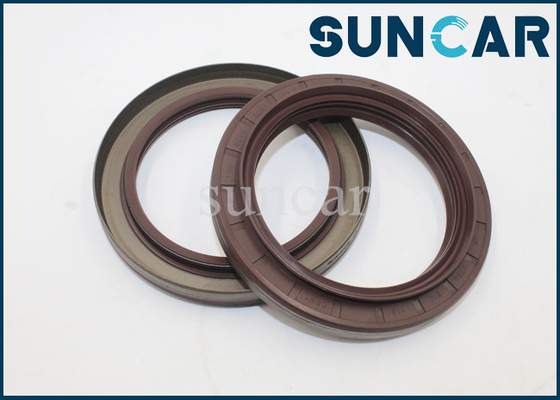

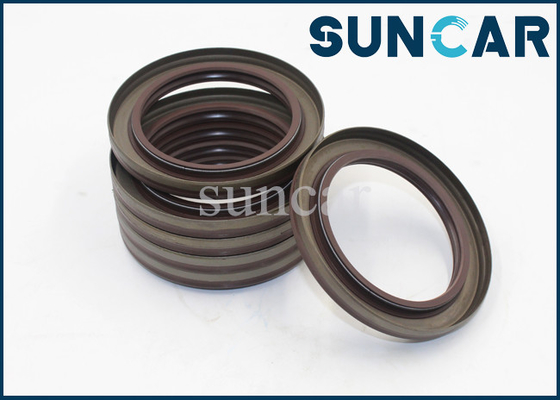

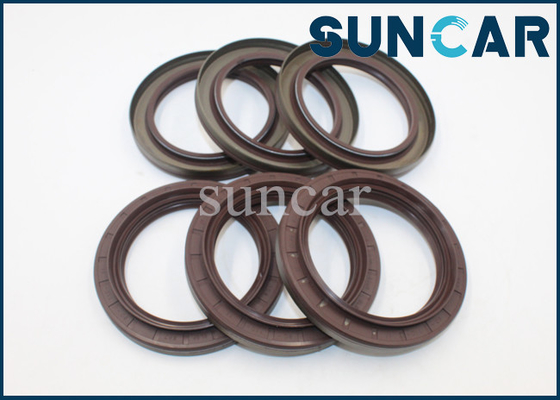

Product Show:

Hydraulic Oil Seal ZGAQ-02057 Shaft Seal For Hyundai Wheel Excavator R140W-7 R170W-9 R210W-9 1

Hydraulic Oil Seal ZGAQ-02057 Shaft Seal For Hyundai Wheel Excavator R140W-7 R170W-9 R210W-9 2
