LZ00376 Excavator Bucket Seal Kit CASE CX210 Hydraulic Cylinder Service Kit

Place of Origin CHINA(MAINLAND)
Brand Name SUNCAR
Certification ISO9001
Model Number LZ00376 CASE CX210
Minimum Order Quantity Trial order acceptable
Price Negotiation
Packaging Details PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment Terms Western Union, Paypal, T/T, Transfer
Supply Ability 1000 set per week
Product Details
Product Name Bucket Cylinder Service Kit Part Number LZ00376
Shipping Mode By Air, By Sea, By Express(Fedex, UPS, DHL, TNT, Etc.) Warranty Unavailable
Sample Available Feature High Sealing Performance/ Wear Resistance
High Light

LZ00376 Bucket Seal Kit

,

CASE Seal Kit

,

Hydraulic Cylinder Service Kit

Leave a Message
Product Description

LZ00376 Excavator Bucket Seal Kit CASE CX210 Hydraulic Cylinder Service Kit



Product Name Bucket Cylinder Service Kit
Part Number LZ00376
Model Number CASE CX210
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
Certification ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
Category Group Hydraulic Cylinder Seal Kit, Excavator Service Kit
Condition New, genuine new
Sample Available
Applicable Industries

Building material shops, machinery repair shops, retail,

construction work...

Feature High sealing performance, wear resistance, heat resistance
Application Bucket



Product Show:

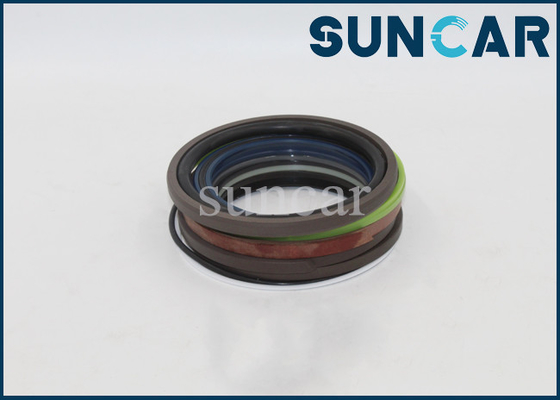

LZ00376 Excavator Bucket Seal Kit CASE CX210 Hydraulic Cylinder Service Kit 0

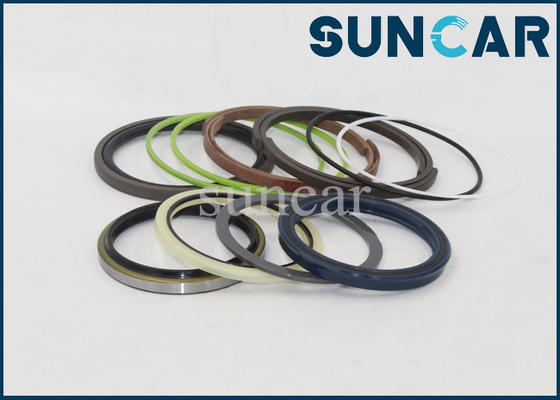

LZ00376 Excavator Bucket Seal Kit CASE CX210 Hydraulic Cylinder Service Kit 1

Pos. Part No Qty Parts Name
  KRV3129 [1] CYLINDER ASSY.
1 LR00534 [1] HYD CYL SLEEVE
2 NSS [1] NOT SOLD SEPARAT
9 160534A1 [1] BUSHING
10 LB00587 [1] PISTON ROD
11 NSS [1] NOT SOLD SEPARAT
12 160535A1 [1] BUSHING
14 LU00072 [1] CYLINDER END CAP
16 155430A1 [1] BUSHING
17 155696A1 [1] RING, SNAP
22 160501A1 [1] SEALING RING
26 155132A1 [1] RING
27 155241A1 [1] BACK-UP RING
28 158033A1 [1] WIPER SEAL
29 154741A1 [1] O-RING
30 160812A1 [1] BACK-UP RING
31 161059A1 [10] BOLT
32 LE00702 [1] RING
33 LJ00664 [1] PISTON
34 160824A1 [1] SEALING RING
37 160813A1 [2] BACK-UP RING
38 LE00703 [2] RING
39 160827A1 [2] RING
40 155721A1 [1] SHIM
41 LA00735 [1] SPECIAL NUT
42 156223A1 [1] SET SCREW
43 155977A1 [1] BALL
44 160500A1 [2] RING
45 160499A1 [2] RING
46 LK00290 [1] TUBE
48 LK00272 [1] HYD TUBE
53 861-10030 [8] HEX SOC SCREW
54 154528A1 [2] O-RING
55 LD00031 [1] CLAMP BRACKET
60 LD00040 [1] CLAMP BRACKET
61 158131A1 [2] BOLT
62 156227A1 [2] WASHER
63 155717A1 [1] COLLAR
65 628-12055 [1] BOLT
66 892-10012 [1] LOCK WASHER,M12
67 153630A1 [2] LUBE NIPPLE
  LZ00376 [1] SEAL KIT

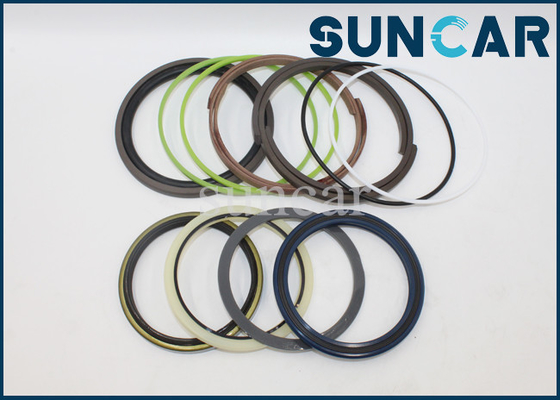

LZ00376 Excavator Bucket Seal Kit CASE CX210 Hydraulic Cylinder Service Kit 2



Storage Precautions:

  • When storing seals, please pay attention to the following items:
  • Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
  • Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
  • When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
  • Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
  • Do not place the seal near the motor or where ozone is generated.
  • Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
  • The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
  • The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.
