Kobelco PV01V00013R300 Dozer Cylinder Seal Kit For Mini Excavator [SK025-2]

  • Kobelco PV01V00013R300 Dozer Cylinder Seal Kit For Mini Excavator [SK025-2]
  • Kobelco PV01V00013R300 Dozer Cylinder Seal Kit For Mini Excavator [SK025-2]
  • Kobelco PV01V00013R300 Dozer Cylinder Seal Kit For Mini Excavator [SK025-2]
  • Kobelco PV01V00013R300 Dozer Cylinder Seal Kit For Mini Excavator [SK025-2]
CertifiC.A.Tion ISO9001
Minimum Order Quantity Acceptable Trial Order

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China Mainland Brand Name Kobelco Dozer Cylinder Seal Kit
Model Number PV01V00013R300 Price Negotiation
Packaging Details PP Bag & Carton Box Delivery Time 3-5 Days After Payment Received(Public Holiday Excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P, Paypal Supply Ability 5000 SET/WEEK
CertifiC.A.Tion ISO9001
High Light

PV01V00013R300

,

Kobelco Dozer Cylinder Seal Kit

,

SK025-2
Leave a Message
Product Description

Kobelco PV01V00013R300 Swing Cylinder

Seal Kit For Mini Excavator [SK025-2]

Product Name

Kobelco PV01V00013R300 Swing Cylinder

Seal Kit For Mini Excavator [SK025-2]
Part No. PV01V00013R300
Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Applicable Industries Machinery repair shops, construction works, energy & mining
Color Black, White or other
Size Standard Size
MOQ We Accept Trial Order
Packing PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time 3-5 Days After Payment Received(Public Holiday Excluded)
Payment Western Union, L/C, T/T, etc.
Port HUAGNPU,China (Mainland)
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed
AppliC.A.Tion Kobelco Mini Excavator
Condition New
Suitable Model

(SK025-2) - COMPACT EXCAVATOR ASN PV06201 (3/01-9/04)

(07-031) - CYLINDER ASSY, DOZER » PV01V00013R300




The Following Seal Kits We Also Can Supply:



* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit





Customer Service:

  • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
  • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
    If you do not find the product you need, please send us an email with a picture, and we will be happy to help you
    Positive feedback is very important to us.



Related Parts:

Kobelco PV01V00013R300 Dozer Cylinder Seal Kit For Mini Excavator [SK025-2] 0


Pos. Part No Qty Parts name
. . PV01V00013F1 [1] CYLINDER
1 PV01V00013S001 [1] TUBE AS SY, CYLINDER
2 PV01V00013S002 [1] COVER, ROD
3 PV01V00013S003 [1] PISTON ROD
4 PV01V00013S004 [1] PISTON
5 PV01V00013S005 [1] HOLDER
6 PV01V00013S006 [1] HOLDER
7 PV01V00013S007 [2] BUSHING
8 PV01V00013S008 [1] NUT
9 PV01V00013S009 [1] COTTER PIN
10 PV01V00013S010 [1] BUSHING
11 PV01V00013S011 [1] WEAR RING
12 ZG91V02000 [1] LUBE NIPPLE,67 Degree x 1/8" PT
13 ZG91S02000 [1] LUBE NIPPLE,1/8" NPT x 1/8" NPT
14 PV01V00013S014 [2] WEAR RING
15 PV01V00013S015 [1] PACKING, PISTON
16 PV01V00013S016 [1] PACKING, ROD
17 PV01V00013S017 [1] RING, BACK UP
18 PV01V00013S018 [1] SEAL, DUST
19 ZD12G08500 [1] O-RING,84.40mm ID x 90.60mm OD x 3.10mm
20 ZD12G08000 [1] O-RING,79.40mm ID x 85.60mm OD x 3.10mm
21 ZD75G08500 [1] RING
22 ZD12P02800 [1] O-RING
23 PV01V00013S023 [4] GASKET
. . PV01V00013R100 [1] SEAL KIT
. . PV01V00013R200 [1] SEAL KIT
. . PV01V00013R300 [1] SEAL KIT
  •


PRODUCT SHOW:

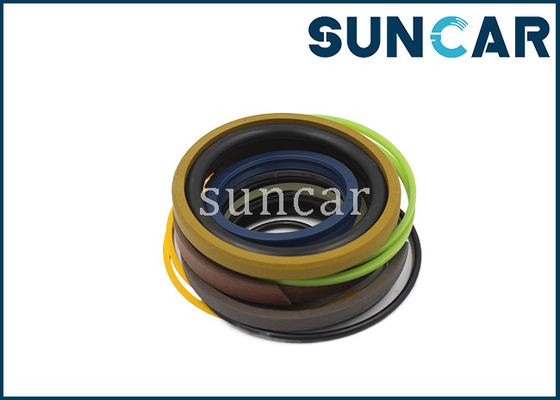

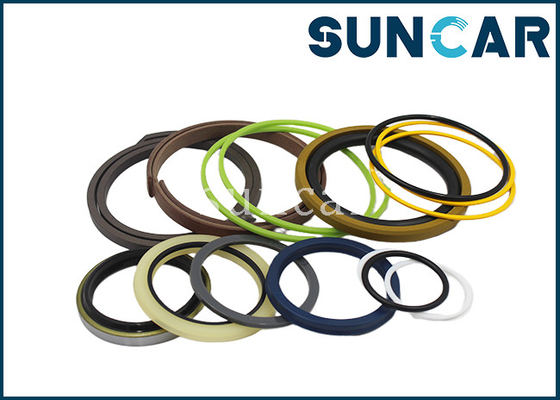

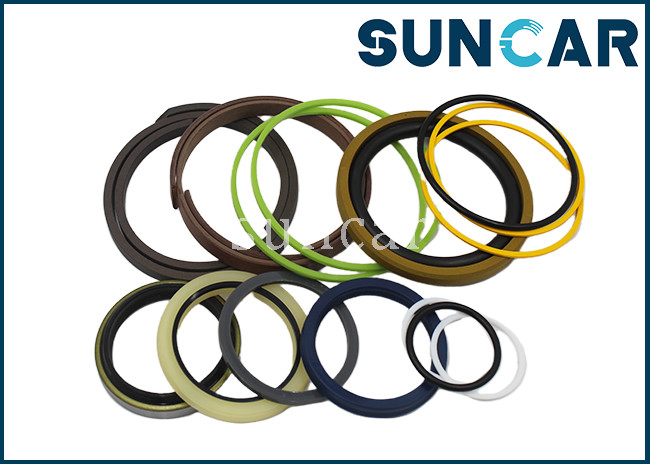

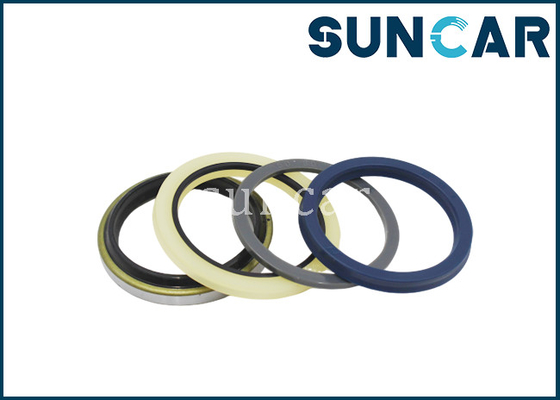

Kobelco PV01V00013R300 Dozer Cylinder Seal Kit For Mini Excavator [SK025-2] 1

Kobelco PV01V00013R300 Dozer Cylinder Seal Kit For Mini Excavator [SK025-2] 2


FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements.
