Doosan 2401-9246KT 24019246KT Swing Motor Seal Kit For Excavator [Solar220LC]

CertifiC.A.Tion ISO 9001
Minimum Order Quantity Acceptable Trial Order

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China Mainland Brand Name Doosan Swing Motor Seal Kit
Model Number 2401-9246KT 24019246KT Price Negotiation
Packaging Details PP Bag & Carton Box Delivery Time 3-5 Days After Payment Received(Public Holiday Excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P, Paypal Supply Ability 5000 SET/WEEK
CertifiC.A.Tion ISO9001
High Light

2401-9246KT 24019246KT

,

Doosan Swing Motor Seal Kit

,

Solar220LC

Leave a Message
Product Description

Doosan 2401-9247KT 24019247KT

Swing Motor Seal Kit For Excavator [Solar220LC]

Product Name

Doosan 2401-9247KT 24019247KT

Swing Motor Seal Kit For Excavator [Solar220LC]

Part No.

2401-9246KT 24019246KT

Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Hardness 70-90 Shore A
Color Black, White or other
Size Standard Size
MOQ We Accept Trial Order
Packing PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time 3-5 Days After Payment Received(Public Holiday Excluded)
Payment Western Union, L/C, T/T, etc.
Port HUAGNPU,China (Mainland)
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed
AppliC.A.Tion Doosan Excavator
Condition New
Suitable Model

SOLAR 220LC-V

SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9246KT

SOLAR 220LC-V

SWING MOTOR(1-1) » SEAL KIT;SWING MOTOR 2401-9246KT

SOLAR 220LL

SWING MOTOR » SEAL KIT;SWING MOTOR 2401-9246KT

The Following Seal Kits We Also Can Supply:



* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit



Customer Service:



  • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
  • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
  • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
  • Positive feedback is very important to us.



Related Parts:
Doosan 2401-9246KT 24019246KT Swing Motor Seal Kit For Excavator [Solar220LC] 0

Pos. Part No Qty Parts name
*. 2401-9246KT [1] SEAL KIT;SWING MOTOR
-. 2401-9246 [1] SWING DEVICE
-. 37T2C021N1011 [1] SWING MOTOR
100 VZ33170-0171 [1] CASING
101 3724250-0270 [1] SHAFT;DRIVE
11 37T2C001-11 [1] PISTON ASSY(121. 122)
111 3733700871 [1] CYLINDER
113 3753700916 [1] RETAINER
114 3753700895 [1] SPRING;CYLINDER
116 PJR3522 [12] ROD;PUSH
117 3753700918 [1] SPACER
118 3753700827 [2] SPACER
121 3753700718 [9] PISTON
122 3743700655 [9] SHOE
123 3743700723 [1] PLATE;SET
124 3753700719 [1] PLATE;SHOE
131 3733700774 [1] PLATE;VALVE
151 OROH14 [2] PLUG
161 OORBP11 [2] O-RING
162 OORBP12 [2] O-RING P12
163 OORBP6 [2] O-RING
171 OSBM855 [4] SCREW M8
20 37T2C108-20 [1] VALVE CASING ASSY(303. 451)
301 3723270-0173 [1] CASING C1
303 3723700722 [1] CASING VALVE
305 3753700796 [1] COVER;SEAL
31 3702490-0336 [1] TIME DELAY VALVE
351 3753700549 [2] PLUNGER
355 3753700548 [2] SPRING
400 V9409196196 [2] VALVE;SWING REACTIONLESS
400-1. OORBP20 [2] O-RING
400-2. OT2BP20 [2] RING BACK UP
401 OSBM2045 [4] SCREW M20
437 ORR60 [1] RING;SNAP
438 ORR52 [1] RING;SNAP
443 PNJ307EVV [1] BEARING;ROLLER
444 PNJ2304EV [1] BEARING;ROLLER
451 OSPV614 [2] PIN;SPRING
464 OVP14 [1] PLUG
469 OROMH30 [2] PLUG M30X1.5
472 OORWG40 [1] O-RING
485 OORBP11 [1] O-RING
488 OORBP28 [2] O-RING
491 PTCNY35MA [1] SEAL;OIL
51 V9705120682 [2] VALVE;RELIEF
51-1. OORBG30 [2] O-RING
52 V9409216208 [1] RELIEF VALVE
702 3733700775 [1] PISTON;BRAKE
706 OORWG38 [1] O-RING
707 OORWG41 [1] O-RING
712 3753700726 [24] SPRING;BRAKE
742 3743700733 [3] PLATE;FRICTION
743 3743700734 [1] PLATE;SEPARATOR
80 37T2C108-80 [1] SEAL KIT
981 PVA34A [3] PLUG;MASKING PF3/4
984 PVA38A [1] PLUG;MASKING PF3/8
993 OBP14 [1] PLUG
994 OBP34 [1] PLUG PT3/4



PRODUCT SHOW:

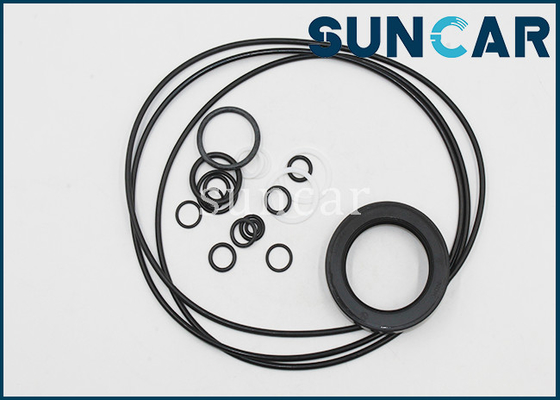

Doosan 2401-9246KT 24019246KT Swing Motor Seal Kit For Excavator [Solar220LC] 1

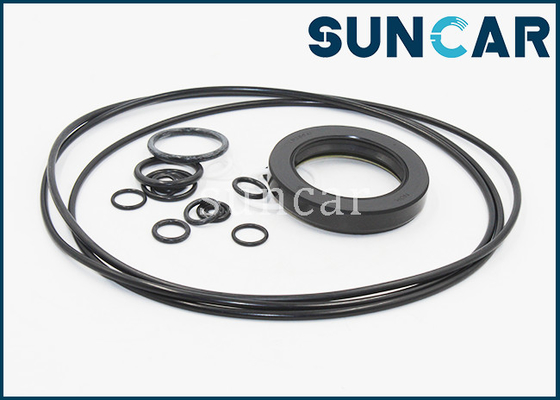

Doosan 2401-9246KT 24019246KT Swing Motor Seal Kit For Excavator [Solar220LC] 2




FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements.
