Kobelco YM30V00003R120 Main Valve Seal Kit For Excavator [ED190LC, SK160LC]

  • Kobelco YM30V00003R120 Main Valve Seal Kit For Excavator [ED190LC, SK160LC]
  • Kobelco YM30V00003R120 Main Valve Seal Kit For Excavator [ED190LC, SK160LC]
  • Kobelco YM30V00003R120 Main Valve Seal Kit For Excavator [ED190LC, SK160LC]
CertifiC.A.Tion ISO 9001
Minimum Order Quantity Acceptable Trial Order

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China Mainland Brand Name Kobelco Main Valve Seal Kit
Model Number YM30V00003R120 Price Negotiation
Packaging Details PP Bag & Carton Box Delivery Time 3-5 Days After Payment Received(Public Holiday Excluded)
Payment Terms Western Union, L/C, T/T, , D/A, D/P, Paypal Supply Ability 5000 SET/WEEK
CertifiC.A.Tion ISO9001
High Light

YM30V00003R120

,

Kobelco Main Valve Seal Kit

,

ED190LC SK160LC
Leave a Message
Product Description

Kobelco YM30V00003R120 Main Valve

Seal Kit For Excavator [ED190LC, SK160LC]

Product Name

Kobelco YM30V00003R120 Main Valve

Seal Kit For Excavator [ED190LC, SK160LC]
Part No.  YM30V00003R120
Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Hardness 70-90 Shore A
Color Black, White or other
Size Standard Size
MOQ We Accept Trial Order
Packing PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time 3-5 Days After Payment Received(Public Holiday Excluded)
Payment Western Union, L/C, T/T, etc.
Port HUAGNPU,China (Mainland)
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed

AppliC.A.Tion

 Kobelco Excavator
Condition New
Suitable Model

(ED190LC) - BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135 (1/02-12/06)

(06-023[01]) - VALVE ASSY, CONTROL, P/N YM30V00003F1 » YM30V00003R120

(06-023[02]) - VALVE ASSY CONTROL, P/N YM30V00003F1 » YM30V00003R120

(06-023[03]) - VALVE ASSY CONTROL, P/N YM30V00003F1 » YM30V00003R120

(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02)

(08-016[01]) - CONTROL VALVE ASSY P/N YM30V00003F1 » YM30V00003R120

(08-016[02]) - CONTROL VALVE ASSY P/N YM30V00003F1 » YM30V00003R120

(08-016[03]) - CONTROL VALVE ASSY P/N YM30V00003F1 » YM30V00003R120

The Following Seal Kits We Also Can Supply:



* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit



Customer Service:



  • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
  • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
  • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
  • Positive feedback is very important to us.



​Related Parts:

Kobelco YM30V00003R120 Main Valve Seal Kit For Excavator [ED190LC, SK160LC] 0

Pos. Part No Qty Parts name
. . YM30V00003F1 [1] VALVE ASSY,CONTROL
155 YW30V00001S155 [2] PLUG
156 YN30V00001S156 [3] PLUG
158 YN30V00001S158 [1] PLUG
162 ZD12G03000 [17] O-RING,29.40mm ID x 35.60mm OD x 3.10mm
163 ZD12P01500 [3] O-RING
164 ZD12P01800 [2] O-RING
166 ZD12P01400 [3] O-RING
168 ZD12P00800 [1] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro
201 2436U1265S201 [8] COVER
204 YN30V00021S207 [4] COVER
206 2436U1265S203 [8] COVER
211 YX30V00009F1 [2] LOCK VALVE
262 2436U1457S162 [12] O-RING,2mm Thk x 39.5mm ID, 90 Duro
265 ZD12G03500 [8] O-RING,34.40mm ID x 40.60mm OD x 3.10mm
273 ZS23C08025 [40] SCREW,Hex Socket Head, M8 x 25mm
301 YB30V00003S301 [1] REPAIR KIT
302 YM30V00003S302 [1] SPOOL
303 YM30V00003S303 [1] SPOOL ASSY, SWING
304 YM30V00003S304 [1] SPOOL
305 YW30V00006S305 [1] SPOOL
306 YW30V00006S306 [2] SPOOL, TRAVEL
307 YM30V00003S307 [1] SPOOL, STRAIGHT TRAVEL
308 YW30V00001S308 [1] SPOOL
309 LP30V00004S312 [2] REPAIR KIT
310 YB30V00003S310 [1] SPOOL
324 YX30V00011S324 [3] SPRING
325 YN30V00001S325 [8] SPRING
326 YN30V00001S326 [6] SPRING
327 YN30V00001S327 [2] SPRING
328 YX30V00011S328 [1] SPRING
329 2436U1265S322 [4] SPRING
332 2436U1265S332 [24] SPRING SEAT
333 2436U1265S336 [12] BOLT
337 2436U1265S335 [10] STOP
338 YN30V00001S338 [2] STOP
512 2436U1265S511 [9] POPPET
513 YW30V00001S513 [2] POPPET
514 YW30V00001S514 [2] POPPET
515 YN30V00001S515 [1] POPPET
517 YY30V00015S517 [1] POPPET
522 2436U1265S521 [12] SPRING
524 YW30V00001S524 [2] SPRING
527 YY30V00015S527 [1] SPRING
552 YN30V00001S552 [13] PLUG
556 YW30V00001S556 [2] PLUG
557 YY30V00015S557 [1] PLUG (M22, tp 1.5)
562 ZD12P02000 [16] O-RING,2.4mm Thk x 19.8mm ID, 90 Duro
601 YN22V00001F3 [1] VALVE
602 YN22V00002F1 [3] VALVE
603 YN22V00002F9 [3] VALVE
973 ZS23C14110 [7] SET SCREW,Hex Socket Head, M14 x 110mm
974 ZS23C14075 [1] CAPSCREW,Hex Socket Head, M14 x 75mm
. . YB30V00003R100 [1] REPAIR KIT
. . YM30V00003R100 [1] CONTROL VALVE
. . YM30V00003R110 [1] REPAIR KIT
. . YM30V00003R120 [1] CONTROL VALVE
. . YW30V00006R130 [1] SPOOL
. . YM30V00003R130 [1] REPAIR KIT (INCL 307,325,326,332,333,337)
. . YW30V00006R150 [1] SPOOL
. . YW30V00001R160 [1] SPOOL
. . LP30V00004R120 [1] REPAIR KIT
. . YB30V00003R140 [1] REPAIR KIT


PRODUCT SHOW:

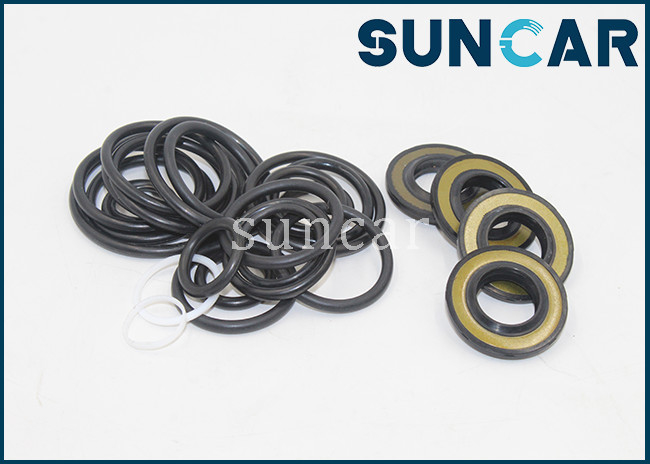

Kobelco YM30V00003R120 Main Valve Seal Kit For Excavator [ED190LC, SK160LC] 1

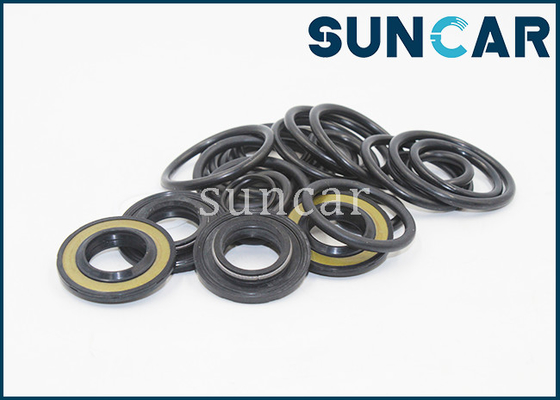

Kobelco YM30V00003R120 Main Valve Seal Kit For Excavator [ED190LC, SK160LC] 2

FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements.
