![Kobelco YM30V00002R100 Pilot Valve Seal Kit For Excavator[SK100L, SK100]](/photo/pl161056683-kobelco_ym30v00002r100_pilot_valve_seal_kit_for_excavator_sk100l_sk100.jpg)
|
| Brand Name: | SUNCAR |
| Model Number: | YM30V00002R100 |
| MOQ: | Acceptable Trial Order |
| Price: | Negotiation |
| Packaging Details: | PP BAG & CARTON BOX |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
Kobelco YM30V00002R100 Pilot Valve
Seal Kit For Excavator[SK100L, SK100]
| Product Name |
Kobelco YM30V00002R100 Pilot Valve Seal Kit For Excavator[SK100L, SK100] |
|---|---|
| Part No. | YM30V00002R100 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Hardness | 70-90 Shore A |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We Accept Trial Order |
| Packing | PP BAG & CARTON BOX( According To Your Requirements) |
| Delivery Time | 3-5 Days After Payment Received(Public Holiday Excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
|
AppliC.A.Tion |
Kobelco Excavator |
| Condition | New |
| Suitable Model |
(SK100) - EXCAVATOR BTW YW06501 - YW07744 (1/94-12/95) (07-034) - VALVE ASSY, PILOT » YM30V00002R100 (SK100L) - EXCAVATOR BTW LX10101 - LX10160 (1/94-12/95) (07-034) - VALVE ASSY, PILOT » YM30V00002R100 |
The Following Seal Kits We Also Can Supply:
* Hydraulic Pump Seal Kit
* Control Valve Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Adjuster Seal Kit
* Center Joint Seal Kit
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Bucket Cylinder Seal Kit
* Breaker Hammer Seal Kit
Customer Service:
Related Parts:
| Pos. | Part No | Qty | Parts name |
| . . | YN30V00002F1 | [1] | PILOT VALVE |
| 10 | NSS | [2] | NOT SOLD SEPARAT |
| 11 | 2436U1277S2162 | [2] | SPRING SEAT |
| 12 | 2436U1277S2182 | [2] | SPRING SEAT |
| 13 | YN30V00002S013 | [2] | SPRING |
| 14 | 2436U1277S2412 | [2] | SPRING |
| 101 | NSS | [1] | NOT SOLD SEPARAT |
| 111 | 2436U1277S111 | [1] | PLATE, PORT |
| 121 | 2436U1277S121 | [2] | WASHER |
| 122 | 2436U1277S122 | [1] | O-RING |
| 125 | ZS23C08030 | [2] | SCREW,Hex Socket Head, M8 x 30mm |
| 126 | ZP26D05010 | [1] | PIN |
| 131 | 2436U1277S131 | [1] | BUSHING |
| 151 | 2436U944S151 | [1] | PLATE |
| 201 | NSS | [2] | NOT SOLD SEPARAT |
| 211 | 2436U1277S211 | [4] | PLUG |
| 212 | 2436U1277S212 | [4] | ROD |
| 213 | 2436U1277S213 | [4] | SEAL |
| 214 | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro |
| 215 | 2436U1277S215 | [8] | WASHER |
| 216 | 2436U1277S2161 | [2] | SPRING SEAT |
| 217 | 2436U1277S217 | [4] | WASHER |
| 218 | 2436U1277S2181 | [2] | PIN |
| 221 | 2436U2581S2216 | [2] | SPRING |
| 241 | 2436U1277S2411 | [2] | SPRING |
| 246 | 2436U1277S246 | [4] | SPRING |
| 301 | 2436U2581S301 | [1] | FLEXIBLE JOINT |
| 302 | 2436U2581S302 | [1] | PLATE |
| 312 | 2436U1242S312 | [1] | NUT |
| 457 | 2436U1242S457 | [1] | GROMMET |
| . . | YM30V00002R100 | [1] | REPAIR KIT,CONSISTS OF ITEM 121.122. 213.214 |

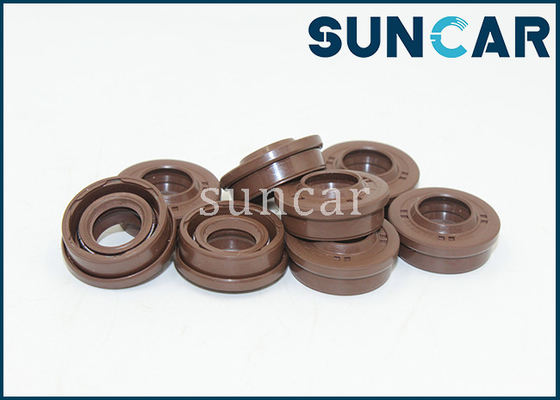

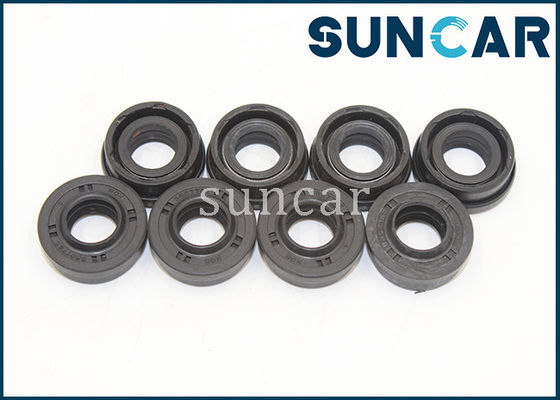

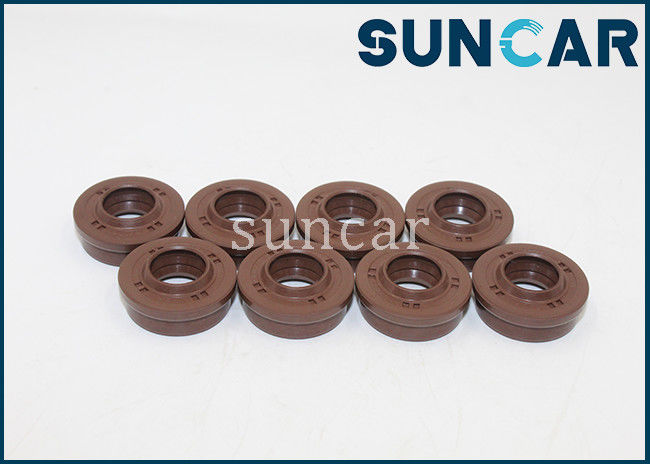

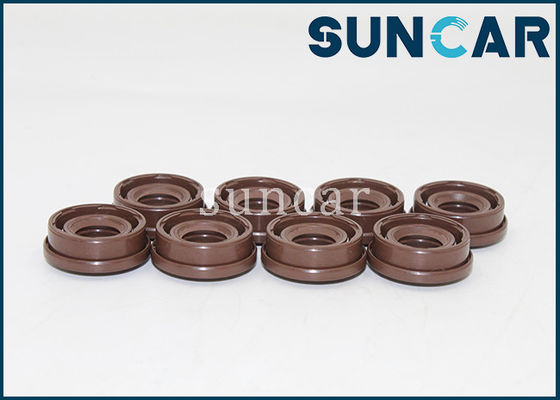

PRODUCT SHOW:
FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.
2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)
3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements.
|
|
