Hydraulic Cylinder Seal Kit

1543294C1 Good Quality Seal Kit Case Part For Case Construction King Loader Backhoe 480F

All Category

Piston Seals And Piston Rod Seals

Main Valve Seal Kit

Miss. Alina

Alina@suncarseals.com

86-14749308310

Contact Now

1543294C1 Good Quality Seal Kit Case Part For Case Construction King Loader Backhoe 480F

Brand Name:	SUNCAR
Model Number:	1543256C1
MOQ:	Acceptable Trial Order
Price:	Negotiation
Packaging Details:	PP BAG & CARTON BOX
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA MAINLAND

Certification:

ISO9001

Place Of Origin:

China Mainland

Brand Name:

Boom Cylinder Seal Kit

Model Number:

84259224

CertifiC.A.Tion:

ISO9001

Price:

Negotiation

Packaging Details:

PP Bag & Carton Box

Payment Terms:

Western Union, L/C, T/T, , D/A, D/P, Paypal

Delivery Time:

3-5 Days After Payment Received(Public Holiday Excluded)

Supply Ability:

5000 SET/WEEK

Supply Ability:

5000 SET/WEEK

Highlight:

1543294C1

Seal Kit

Case

Product Description

1543294C1 Good Quality Seal Kit Case Part For Case Construction King Loader Backhoe 480F

Product Name	1543294C1 Good Quality Seal Kit Case Part For Case Construction King Loader Backhoe 480F
Part No.	1543294C1
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature	Resistance to high pressure, oil, weather, abrasion, solvent
Applicable Industries	Machinery repair shops, construction works, energy & mining
Color	Black, White or other
Size	Standard Size
MOQ	We Accept Trial Order
Packing	PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time	3-5 Days After Payment Received(Public Holiday Excluded)
Payment	Western Union, L/C, T/T, etc.
Port	HUAGNPU,China (Mainland)
Express	Fedex,TNT,UPS,DHL
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Case Excavator
Condition	New
Suitable Model	(550H) - CASE CRAWLER TRACTOR (12/99-12/08) (8-09) - CYLINDER ASSY, LIFT » 1543267C1 (550H-IND) - CASE CRAWLER TRACTOR (12/99-12/08) (08-09) - CYLINDER ASSY, LIFT » 1543267C1 (621B) - CASE WHEEL LOADER (NORTH AMERICA) (3/93-12/98) (5-18) - STEERING CYLINDER » 1543267C1 (721B) - CASE WHEEL LOADER (NORTH AMERICA) (3/93-12/98) (5-20) - STEERING CYLINDER » 1543267C1 (621C) - CASE WHEEL LOADER (1/99-12/01) (05-034) - CYLINDER ASSEMBLY STEERING » 1543267C1 (721C) - CASE WHEEL LOADER (1/99-12/02) (05-09) - CYLINDER ASSY - STEERING » 1543267C1 (480F) - CASE CONSTRUCTION KING LOADER BACKHOE (9/89-12/94) (8-122) - 1340792C1 LOADER LIFT CYLINDER » 1543267C1 (8-127A) - 1346189C1 AND 1346190C1 LOADER CLAM CYLINDERS » 1543267C1 (480F LL) - CASE CONSTRUCTION KING LOADER BACKHOE (9/89-12/94) (8-122) - 1340792C1 LOADER LIFT CYLINDER » 1543267C1 (8-127A) - 1346189C1 AND 1346190C1 LOADER CLAM CYLINDERS » 1543267C1 (580SK) - CASE SUPER-K CONSTRUCTION KING LOADER BACKHOE (3/96-12/96) (8-120) - LOADER CLAM CYLINDERS » 1543267C1 (8-140) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (580L) - LOADER BACKHOE (NORTH AMERICA) (2/97-12/97) (8-122) - LOADER LIFT CYLINDERS » 1543267C1 (8-126) - LOADER CLAM CYLINDERS » 1543267C1 (8-138) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (580L) - SERIES 2 LOADER BACKHOE - ASN JJG0239360 (2/97-12/00) (8-138) - LOADER LIFT CYLINDERS » 1543267C1 (8-142) - LOADER CLAM CYLINDERS » 1543267C1 (8-154) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (590L) - LOADER BACKHOE (1/98-12/98) (8-150) - LOADER CLAM CYLINDERS » 1543267C1 (8-166) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (590) - TURBO LOADER BACKHOE (1/88-12/91) (8-106) - LOADER CLAM CYLINDERS » 1543267C1 (8-126) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (580M) - LOADER BACKHOE (NA) - ASN JJG0285001 (9/00-12/04) (08-53) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-59) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580M) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C303000 (2/04-12/08) (08-60) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-66) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580M) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C500000 (2/08-12/10) (00-01) - INITIAL STOCKING LIST (ISL) » 1543267C1 (08-60) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-66) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580N) - LOADER BACKHOE (TIER 3) (4/10-12/12) (05.500.01[02]) - INITIAL STOCKING LIST "B" (ISL) - FOR NA ONLY » 1543267C1 (35.701.03) - CYLINDER - LOADER 4-IN-1 » 1543267C1 (580SK) - LOADER BACKHOE EU (5/90-12/96) (8-356) - LOADER CLAM CYLINDERS » 1543267C1 (8-380) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (580SL) - LOADER BACKHOE (5/98-12/00) (8-150) - LOADER CLAM CYLINDERS » 1543267C1 (8-170) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (580SL) - SERIES 2 LOADER BACKHOE - ASN JJG0258464 (4/94-12/00) (8-130) - LOADER CLAM CYLINDERS » 1543267C1 (8-142) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (590SL) - LOADER BACKHOE (3/95-12/98) (8-150) - LOADER CLAM CYLINDERS » 1543267C1 (8-166) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (590SL) - SERIES 2 LOADER BACKHOE - ASN JJG0210575 (3/98-12/00) (9-16) - LOADER CLAM CYLINDERS » 1543267C1 (9-22) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (580SM) - LOADER BACKHOE (NORTH AMERICA) (12/99-12/04) (08-56) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-62) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580SM) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C304000 (2/04-12/08) (08-64) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-70) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580SM) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C5040000 (2/08-12/10) (05.100.01[01]) - INITIAL STOCKING LIST (ISL) 580SM » 1543267C1 (05.100.01[02]) - INITIAL STOCKING LIST (ISL) 580SM+ » 1543267C1 (35.730.02) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (35.740.02) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580SM) - SERIES 3 TLB TIER 3 DECOMPLEXITY - COMPLETED FIGURES (2/08-12/10) (35.730.02) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (35.740.02) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580SM+) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C307000 (2/04-12/08) (08-64) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-70) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580SM+) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508000 (2/08-12/08) (05.100.01[01]) - INITIAL STOCKING LIST (ISL) 580SM » 1543267C1 (05.100.01[02]) - INITIAL STOCKING LIST (ISL) 580SM+ » 1543267C1 (35.730.02) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (35.740.02) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (590SM) - LOADER BACKHOE (NORTH AMERICA) (12/01-12/04) (08-55) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-61) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (590SM) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C309000 (1/03-12/08) (08-64) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-70) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (590SM) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508500 (2/08-12/10) (00-01[01]) - INITIAL STOCKING LIST (ISL) 590SM » 1543267C1 (00-01[02]) - INITIAL STOCKING LIST (ISL) 590SM+ » 1543267C1 (08-64) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-70) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (590SM+) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C509200 (2/08-12/10) (00-01[01]) - INITIAL STOCKING LIST (ISL) 590SM » 1543267C1 (00-01[02]) - INITIAL STOCKING LIST (ISL) 590SM+ » 1543267C1 (08-64) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (08-70) - CYLINDER ASSY - BACKHOE EXTENDABLE DIPPER » 1543267C1 (580SN) - LOADER BACKHOE - TIER 3 (4/10-12/12) (05.500.01[02]) - INITIAL STOCKING LIST "B" (ISL) - FOR NA ONLY » 1543267C1 (35.701.03) - CYLINDER - LOADER 4-IN-1 » 1543267C1 (580SN WT) - BACKHOE LOADER, WIDE TRACK - TIER 3 (7/09-12/12) (05.500.01[02]) - INITIAL STOCKING LIST "B" (ISL) - FOR NA ONLY » 1543267C1 (35.701.03) - CYLINDER - LOADER 4-IN-1 » 1543267C1 (590SN) - LOADER BACKHOE (TIER 3) (11/10-12/12) (05.500.01[02]) - INITIAL STOCKING LIST "B" (ISL) - FOR NA ONLY » 1543267C1 (35.701.03) - CYLINDER - LOADER 4-IN-1 » 1543267C1 (570LXT) - LOADER LANDSCAPER (1/94-12/97) (8-122) - LOADER LIFT CYLINDERS » 1543267C1 (8-126) - LOADER CLAM CYLINDERS » 1543267C1 (8-138) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (570LXT) - SERIES-2 LOADER LANDSCAPER - ASN JJG0225755 (1/98-12/01) (8-138) - LOADER LIFT CYLINDERS » 1543267C1 (8-142) - LOADER CLAM CYLINDERS » 1543267C1 (8-154) - BACKHOE DIPPER EXTENSION CYLINDER » 1543267C1 (570MXT) - LOADER LANDSCAPER (1/01-12/08) (08-34) - CYLINDER ASSY - LOADER CLAM » 1543267C1 (570MXT) - SERIES 3 LOADER LANDSCAPER TIER 3 - ASN N8C510600 (1/08-12/12) (00-01) - INITIAL STOCKING LIST (ISL) » 1543267C1 (08-27) - CYLINDER ASSY - LOADER CLAM » 1543267C1

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

Related Parts:

1543294C1 Good Quality Seal Kit Case Part For Case Construction King Loader Backhoe 480F 0

Pos.	Part No	Qty	Parts name	Comments
1	G109342	[1]	CYLINDER ASSY.	CAS CYLINDER ASSEMBLY - 3-1/2 inch (89 mm) ID x 26-5/16 inch (668 mm) stroke, backhoe bucket, Includes: Ref. 2 - 28
2	G109343	[1]	TUBE	CAS - cylinder, without bushings
. .	G104268	[1]	GLAND	CAS ASSEMBLY - cylinder, Includes: Ref. 3 - 9, no longer available, order Ref. 21, 1543118C1 gland and 1543294C1 seal kit below Superseded by part number: 1543294C1, 1543118C1
3	NSS	[1]	NOT SOLD SEPARAT	CON GLAND - cylinder
4	D95146	[1]	WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk	CAS WIPER - piston rod
5	G102427	[1]	BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L	CAS - center
6	G109228	[1]	SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk	CAS - U-cup, piston rod, wide, with O-ring
7	G107998	[1]	SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk	CAS - piston rod, narrow, with groove
8	238-5238	[1]	O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro	CAS Superseded by part number: 87421145
9	G32126	[1]	BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk	CAS - backup, gland O-ring
10	276-2446	[1]	SELF-TAP SCREW,Hex Hd, #8 x 3/8"	CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 " Superseded by part number: 86642312
11	G109752	[1]	ROD ASSY.	CAS ROD ASSEMBLY - piston, 2-1/2 inch (64 mm) diameter, Includes: Ref. 12
12	D32865	[2]	BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L	CAS - piston rod
13	G103357	[1]	PISTON	CAS - cylinder
14	G102286	[1]	SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk	CAS - piston
15	G100710	[1]	RING,Square, 5.28mm Thk x 75.31mm ID	CAS - backup, piston seal
16	G100711	[2]	SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk	CAS Piston
17	28-2048	[1]	BOLT,Hex, 1-1/4" - 12 x 3", Gr 8	CAS
18	G104989	[1]	WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk	CAS - hardened
19	219-1	[1]	LUBE NIPPLE,1/8" - 27 NPTF	CAS FITTING - grease, straight, 1/8 PT x 21/32 inch Superseded by part number: 80710
20	219-36	[1]	LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF	CAS FITTING - grease, 45 degree, 1/8 PT x 7/8 inch Superseded by part number: 80717
. .	NSS	[1]	NOT SOLD SEPARAT	CON GLAND ASSEMBLY - cylinder, Includes: Ref. 21 - 28
21	1543118C1	[1]	GLAND	IH - cylinder
22	D95146	[1]	WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk	CAS WIPER - piston rod
23	G102427	[1]	BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L	CAS - center
24	1542879C1	[1]	SEAL KIT,63.5mm Rod	IH KIT - seal, NSS, not shown, order 1543294C1, Includes: Ref. 25 and 26
25	1542931C1	[1]	SEAL	BHB - rod, NSS, order 1543294C1 kit below
26	1543930C1	[1]	SPINDLE	CAS SEAL - buffer, NSS, order 1543294C1 kit below
27	238-5238	[2]	O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro	CAS Superseded by part number: 87421145
28	G32126	[1]	BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk	CAS - backup, gland O-ring
. .	G109504	[1]	KIT	CAS - seal, Includes: Ref. 4 - 9 and 14 - 16, no longer available, order 1543294C1 kit below Superseded by part number: 1543294C1
. .	1543294C1	[1]	SEAL KIT	IH - seal, Includes: Ref. 7, 14 - 16, 22 - 28 and an instruction sheet

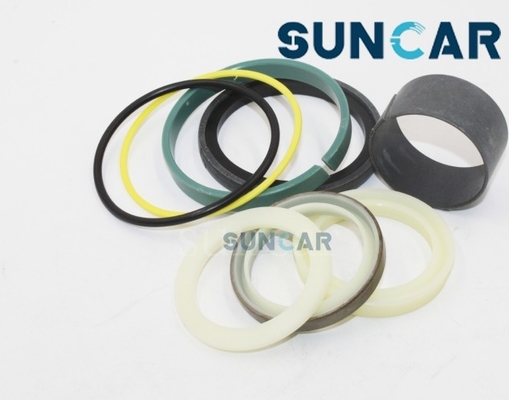

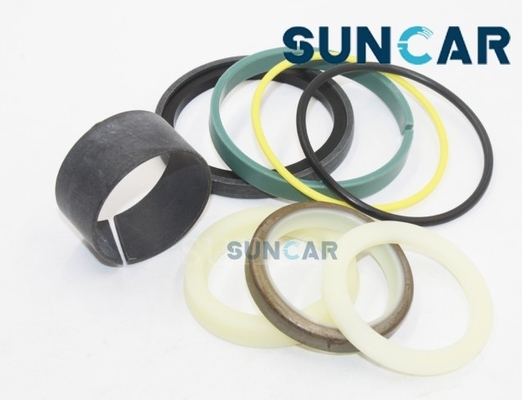

PRODUCT SHOW:
1543294C1 Good Quality Seal Kit Case Part For Case Construction King Loader Backhoe 480F 1

FAQ:

1.If I only know the excavator model, but can not offer parts No., what should I do ?

Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

2.How can I pay the order?

Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

3.When will get the items after I place order?

Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

4.How can I do if there is something wrong with the items?

Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?

Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements
