1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe
  • name
  • name

1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe

Brand Name: SUNCAR
Model Number: 1542923C2
MOQ: Acceptable Trial Order
Price: Negotiation
Packaging Details: PP BAG & CARTON BOX
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA MAINLAND
Certification:
ISO9001
Place Of Origin:
China Mainland
Brand Name:
Boom Cylinder Seal Kit
Model Number:
1542923C2
CertifiC.A.Tion:
ISO9001
Price:
Negotiation
Packaging Details:
PP Bag & Carton Box
Payment Terms:
Western Union, L/C, T/T, , D/A, D/P, Paypal
Delivery Time:
3-5 Days After Payment Received(Public Holiday Excluded)
Supply Ability:
5000 SET/WEEK
Supply Ability:
5000 SET/WEEK
Highlight:

1542923C2

,

Bucket Cylinder Seal Kit

,

Case

Product Description

1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe

Product Name 1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe
Part No. 1542923C2
Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Applicable Industries Machinery repair shops, construction works, energy & mining
Color Black, White or other
Size Standard Size
MOQ We Accept Trial Order
Packing PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time 3-5 Days After Payment Received(Public Holiday Excluded)
Payment Western Union, L/C, T/T, etc.
Port HUAGNPU,China (Mainland)
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed
AppliC.A.Tion Case Excavator
Condition New
Suitable Model

  (580SK) - CASE SUPER-K CONSTRUCTION KING LOADER BACKHOE (3/96-12/96)

(590L) - LOADER BACKHOE (1/98-12/98) (590) - TURBO LOADER BACKHOE (1/88-12/91) (580SL) - LOADER BACKHOE (5/98-12/00) (580SL) - SERIES 2 LOADER BACKHOE - ASN JJG0258464 (4/94-12/00) (590SL) - LOADER BACKHOE (3/95-12/98) (580SM) - LOADER BACKHOE (NORTH AMERICA) (12/99-12/04) (580SM) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C304000 (2/04-12/08) (580SM) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C5040000 (2/08-12/10) (580SM) - SERIES 3 TLB TIER 3 DECOMPLEXITY - COMPLETED FIGURES (2/08-12/10) (580SM+) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C307000 (2/04-12/08) (580SM+) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508000 (2/08-12/08) (590SM) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C508500 (2/08-12/10) (590SM+) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C509200 (2/08-12/10)




The Following Seal Kits We Also Can Supply:



* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit




Customer Service:

  • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
  • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
  • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
  • Positive feedback is very important to us.




​Related Parts:

1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe 0



Pos. Part No Qty Parts name Comments
1 1986901C1 [1] CYLINDER IH ASSEMBLY, 3-1/2, 89, ID x 34-5/16 inch, 872 mm, stroke, bucket, with grease seals (Ref. 21) at rod and tube eyes, no longer available, order 110290A1 cylinder on Figure 8-139C, Includes: Ref. 2 through 30, P/N G109894 and P/N NSS above Ref. 22 Superseded by part number: 235916A1
1 235916A1R [1] REMAN-HYD CYLINDER BRR Reman New PN 1986901C1
1 235916A1C [1] CORE-HYD CYLINDER BRR Return Number
2 1340992C1 [1] TUBE IH ASSEMBLY cylinder, order 110292A1 tube on Figure 8-139C, Includes: Ref. 3 Superseded by part number: 1542656C1
3 D141555 [2] BUSHING,50.19mm ID x 60mm OD x 40mm L CAS Tube
. . G109894 [1] GLAND CAS ASSEMBLY cylinder, has smooth outer lip, no longer available, order Ref. 22, 1542922C1 gland and 1542923C2 seal kit, Includes: Ref. 4 through 10 Superseded by part number: 1542922C2, 1542923C2
4 NSS [1] NOT SOLD SEPARAT CON GLAND cylinder
5 D95146 [1] WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk CAS WIPER piston rod
6 G109908 [1] BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L CAS center
7 G109228 [1] SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk CAS U-cup, with O-ring, piston rod, wide
8 G107998 [1] SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk CAS buffer, grooved, piston rod, narrow
9 238-5235 [1] O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro CAS Gland -235, 70 Duro, 3.109" ID x .139" Thk Superseded by part number: 87421144
10 D38858 [1] BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk CAS RING backup, gland O-ring
11 276-2446 [1] SELF-TAP SCREW,Hex Hd, #8 x 3/8" CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 " Superseded by part number: 86642312
12 1986903C1 [1] PISTON ROD IH ROD ASSEMBLY piston, 2-1/2 inch, 64 mm, diameter, cylinder, order 1542658C1 rod on Figure 8-139C, Includes: Ref. 13 Superseded by part number: 196164A1
13 D140029 [2] BUSHING,50.22mm ID x 60mm OD x 25.5mm L CAS piston rod
14 1986906C1 [1] PISTON IH cylinder
15 G102286 [1] SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk CAS - piston
16 G100710 [1] RING,Square, 5.28mm Thk x 75.31mm ID CAS backup, piston seal
17 G100711 [1] SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk CAS Piston
18 28-2052 [1] BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8 CAS - hex, 1-1/4 NF x 3-1/4 inch, grade 8
19 G104989 [1] WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk CAS flat, 1-1/4 inch, hardened, special
20 219-1 [2] LUBE NIPPLE,1/8" - 27 NPTF CAS FITTING grease, straight, 1/8 PT x 21/32 inch Superseded by part number: 80710
21 D123655 [4] SEAL,50mm ID x 60.15mm OD x 4.06mm Thk CAS tube and rod eyes
. . NSS [1] NOT SOLD SEPARAT CON GLAND ASSEMBLY cylinder, Includes: Ref. 22 through 30
22 1542922C1 [1] GLAND IH cylinder, has identification groove on outer lip Superseded by part number: 1542922C2
23 D95146 [1] WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk CAS WIPER piston rod
24 G109908 [1] BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L CAS center
25 1542879C1 [1] SEAL KIT,63.5mm Rod IH KIT seal, NSS, not shown, Includes: Ref. 26, 27 and 28
26 1542931C1 [1] SEAL BHB rod, NSS, order 1542923C2 kit below
27 1542930C1 [1] SEAL BHB buffer, NSS, order 1542923C2 kit below
28 1543352C1 [1] RING back up, NSS, no longer included in kit 　
29 238-5235 [1] O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro CAS Gland -235, 70 Duro, 3.109" ID x .139" Thk Superseded by part number: 87421144
30 D38858 [1] BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk CAS RING backup, gland O-ring
. . G110046 [1] KIT CAS seal, Includes: Ref. 5 - 10 and 15 - 17, no longer available, order 1542923C2 kit below Superseded by part number: 1542923C2
. . 1542923C2 [1] SEAL KIT,63.5mm Rod x 88.9mm Bore IH KIT seal, Includes: Ref. 15 - 17, 23 - 30 and an instruction sheet

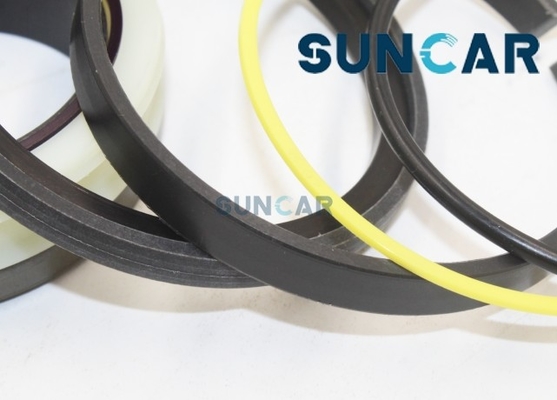

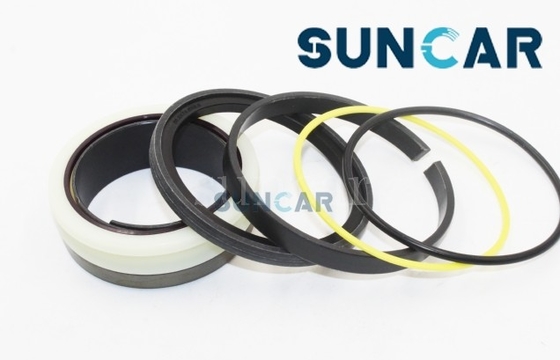

PRODUCT SHOW:


1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe 1

FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements
